Scanbox

Ergo Line Duo

  • Peltier cooling
  • Fan heating

Product description

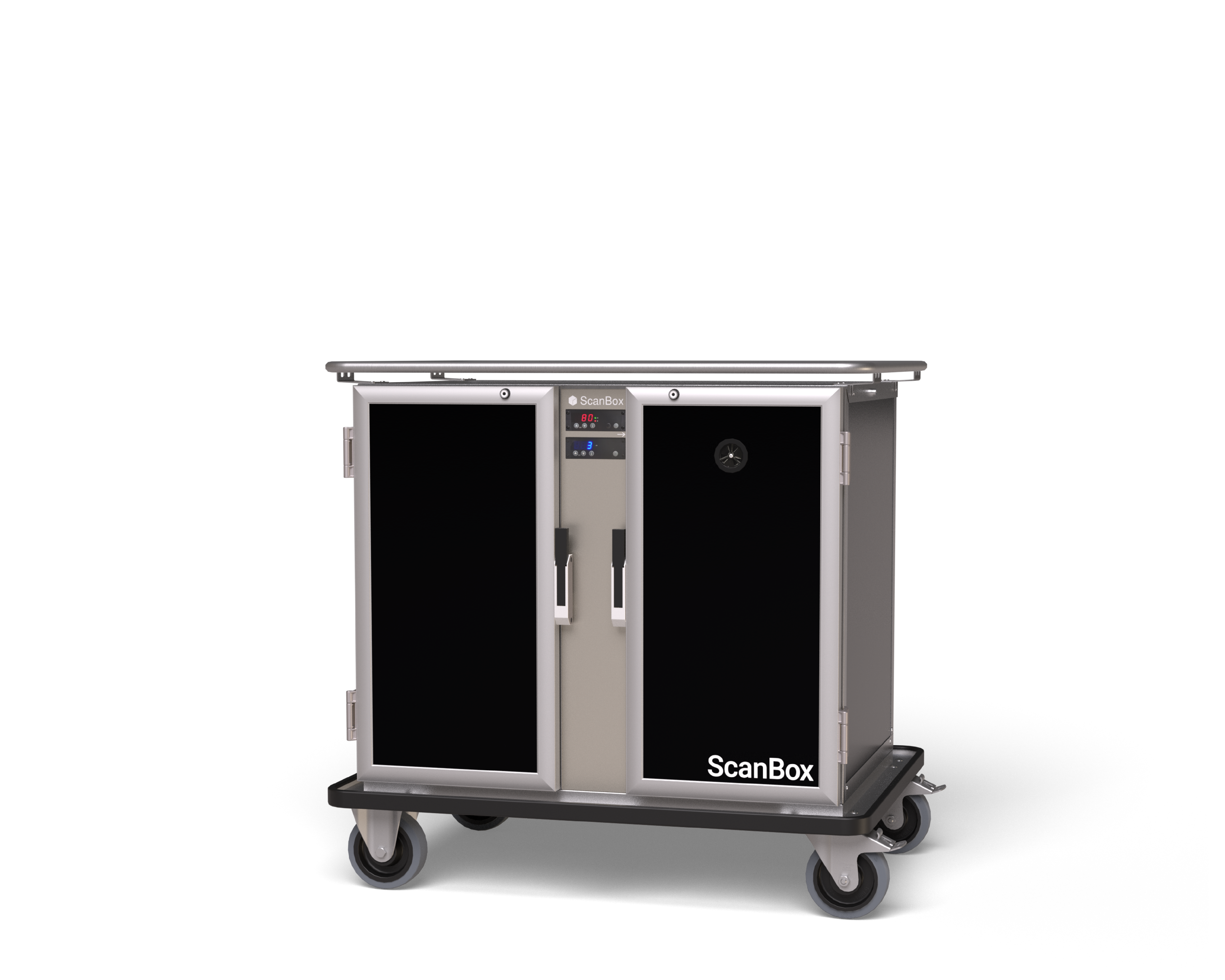

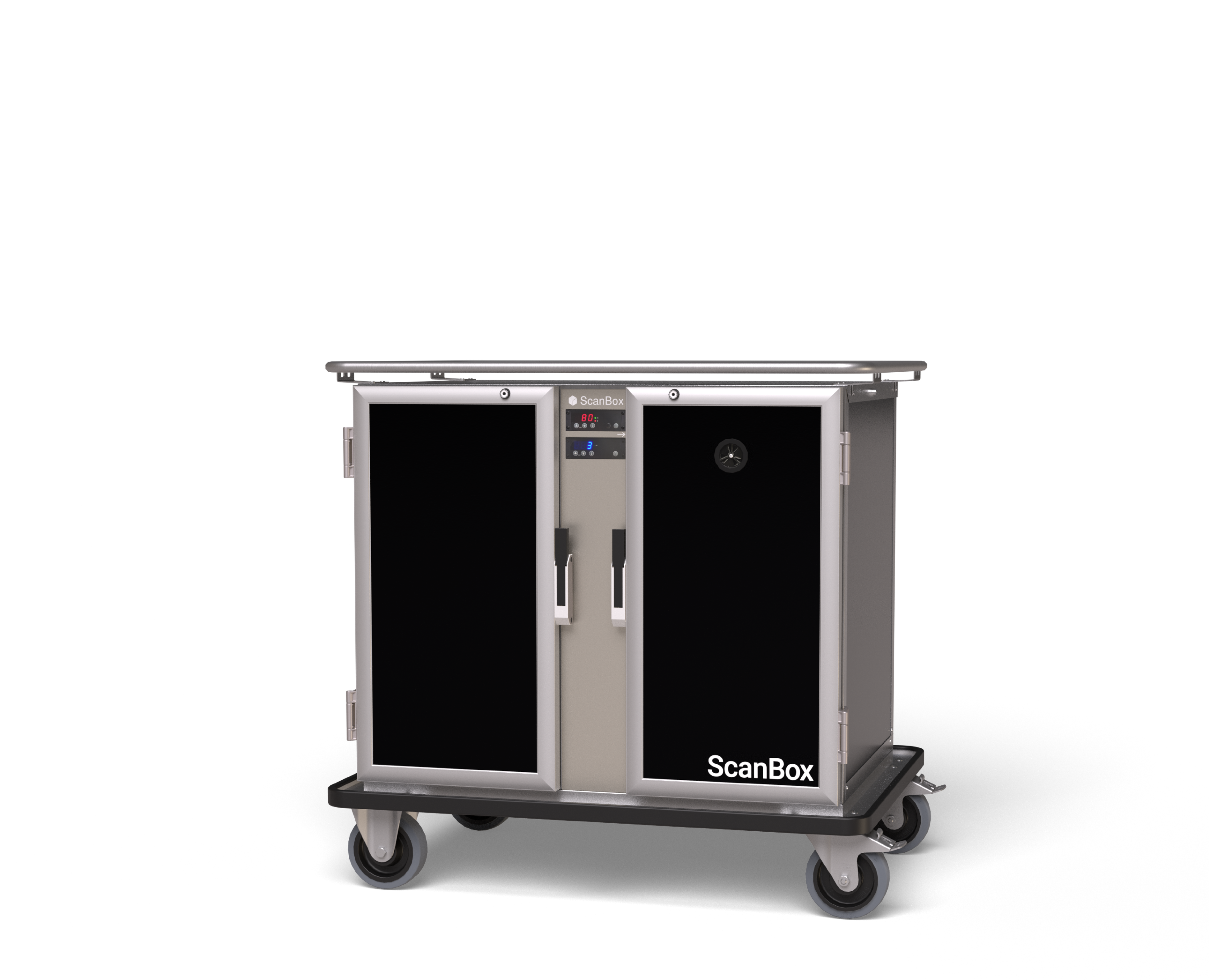

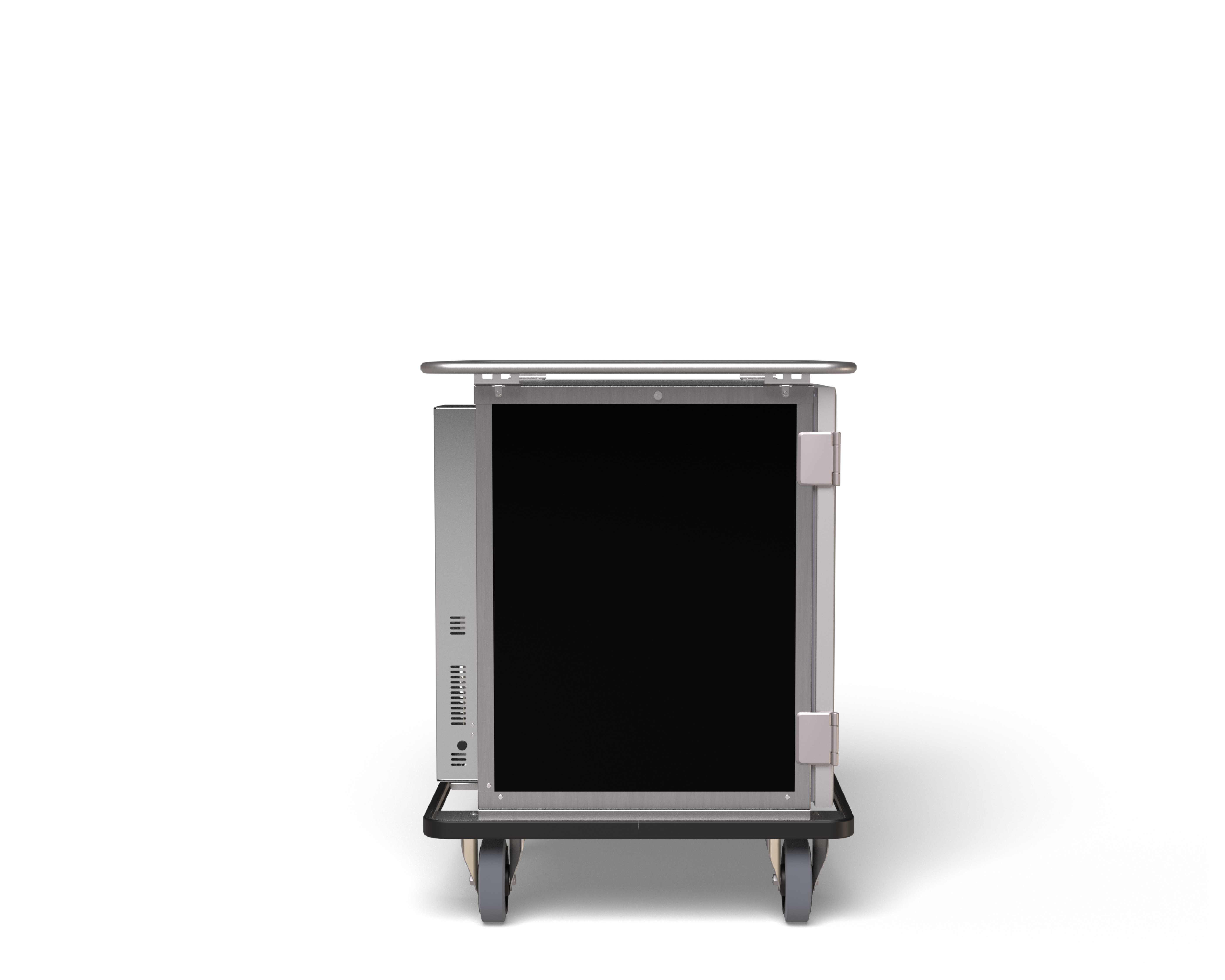

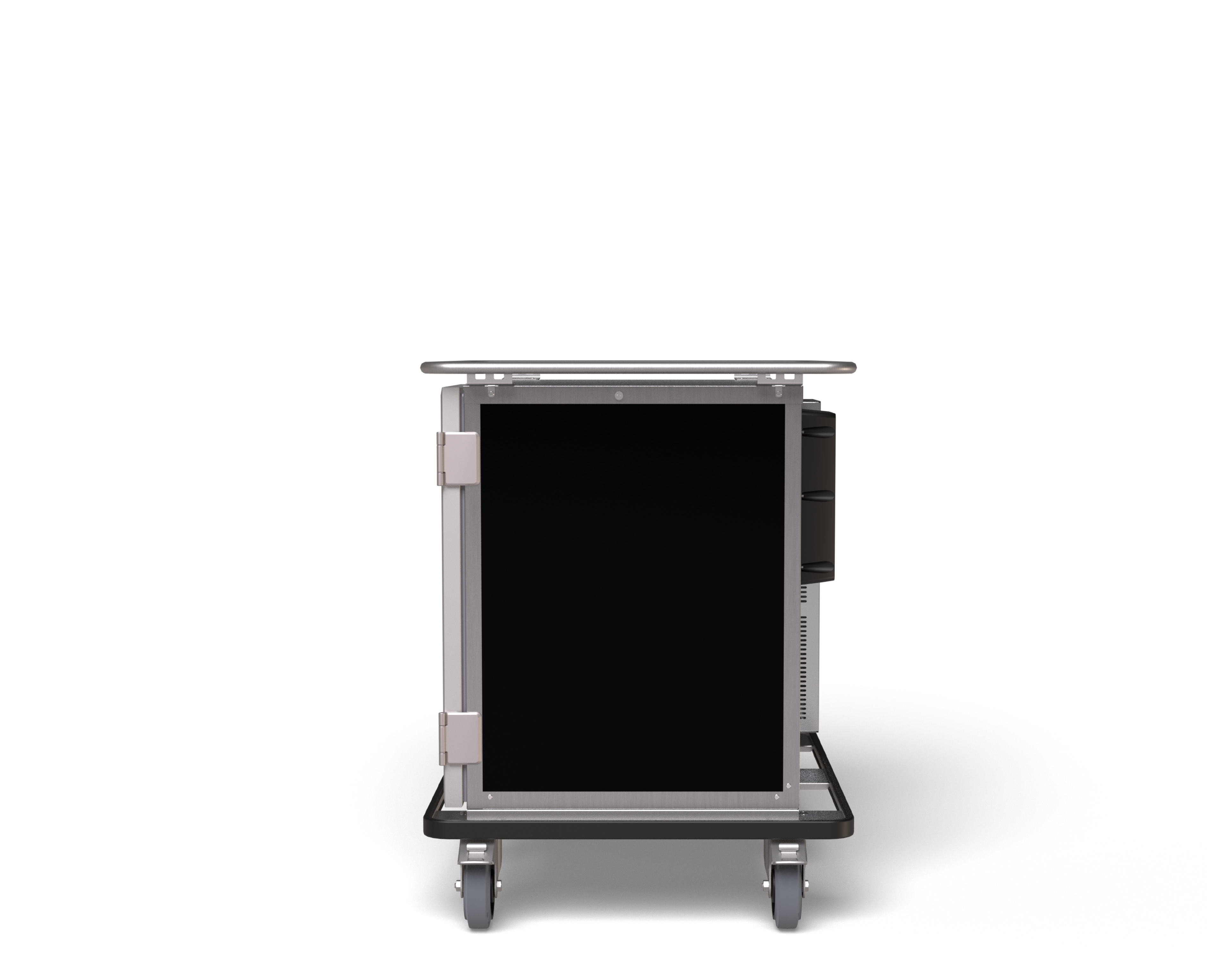

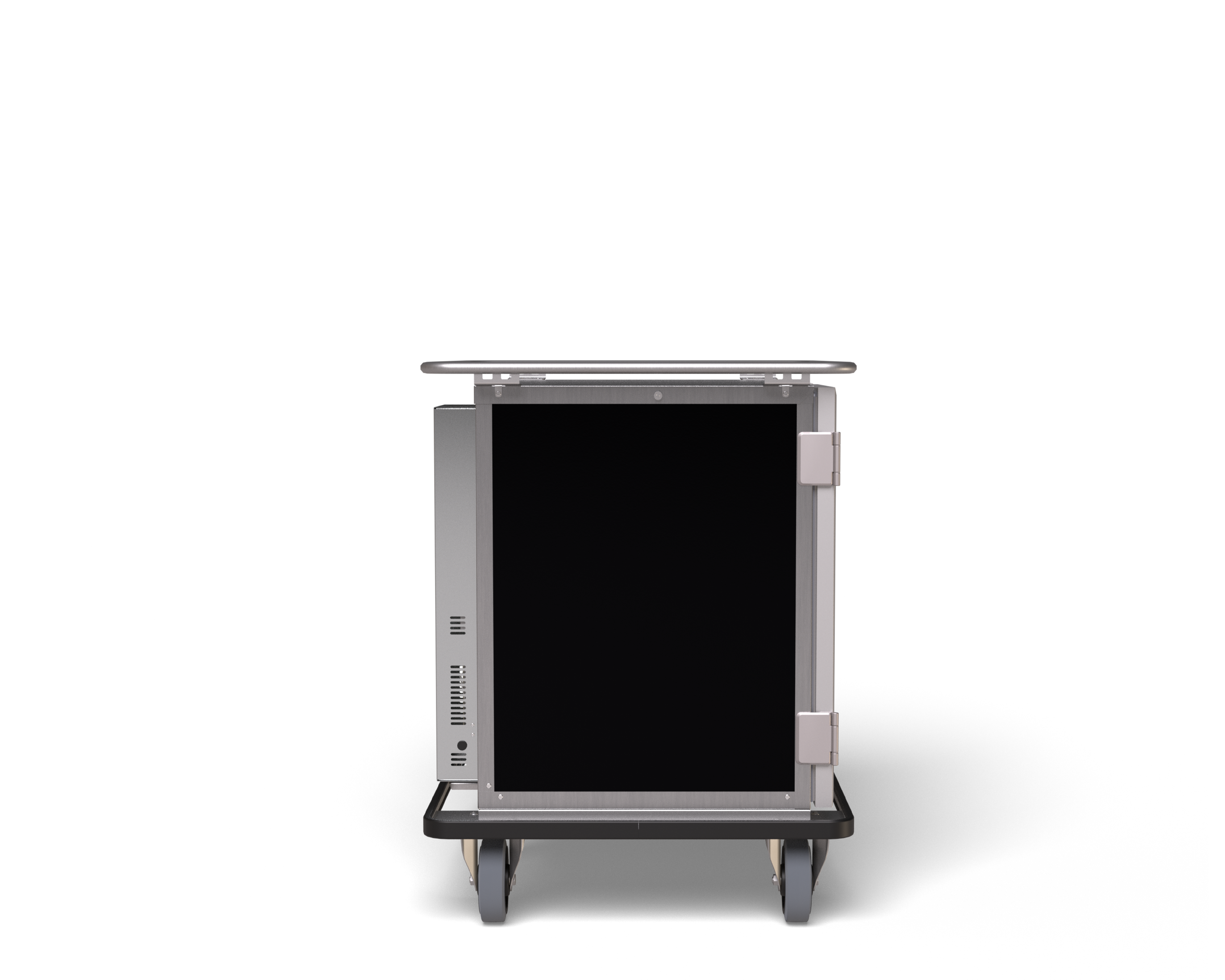

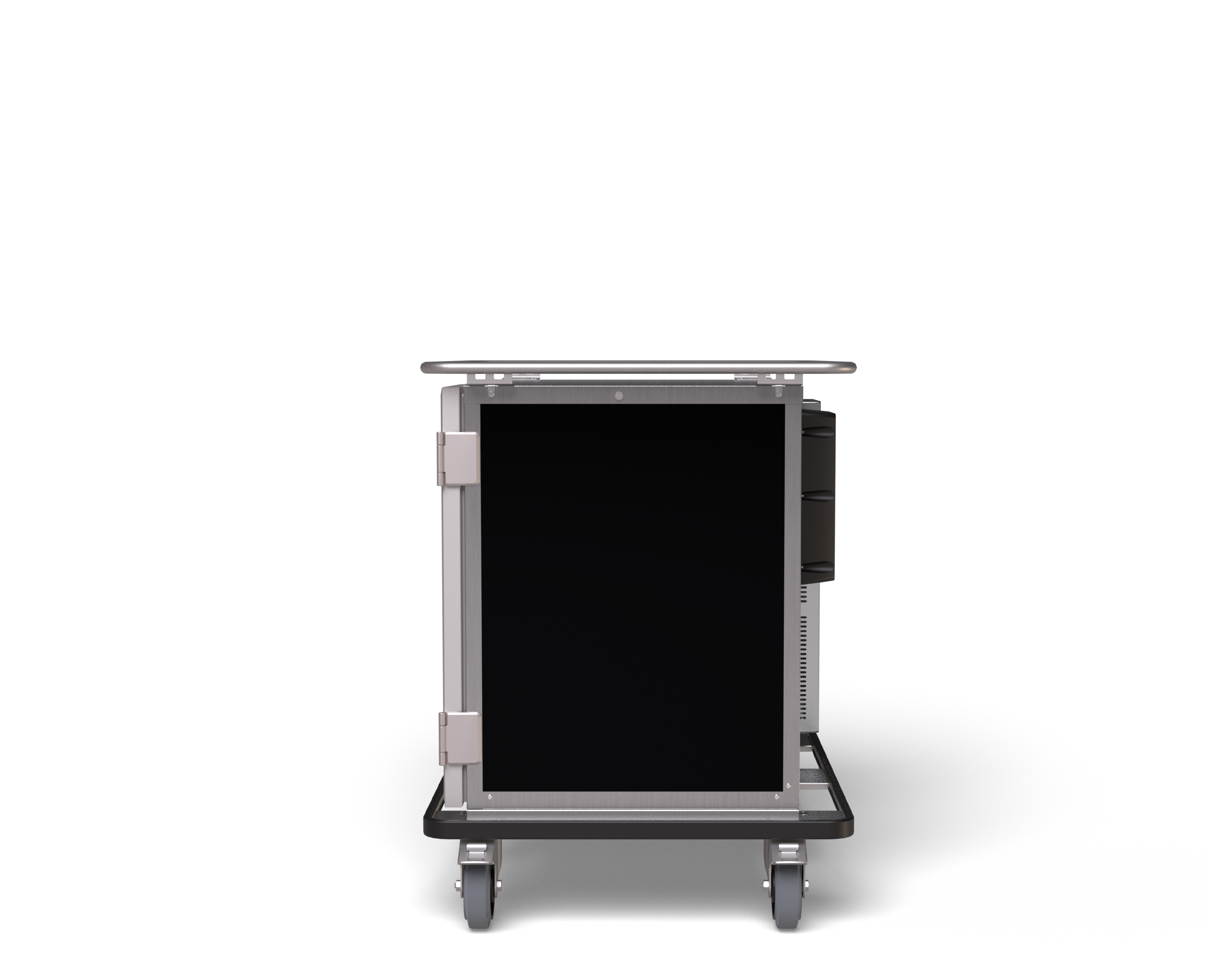

Ergo Line Duo is made to hold and transport hot and cold food in two separate compartments. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.

The left compartment of the box is equipped with Peltier cooling for efficient cooling down to 3°C. The right compartment of the box has fan heating that provides fast and even heat distribution and can reach operating temperatures of up to 90°C. Adjustable temperature and ventilation ensure excellent food quality control. ScanBox Ergo Line Duo is available in several sizes with a capacity of up to 28 containers in the GN 1/1 standard.

Equipped with stainless steel chassis, One grip handle, solid door, 160 mm lockable wheels, removable U-guide rails with 80 mm spacing, black RAL 9005 as standard. The equipment can be easily adapted as required through available extra options.


Equipments

Technical specification

NameValue
Rack pitch80 mm
No of trays16
Rack load max9 kg
Inside dimensionsW:352mm x H:727mm x D:600mm
Outer dimensionsW:1100mm x H:1065mm x D:810mm
Weight100 kg
Voltage220-240 V
Power rating4.67 A
Effect - cold200 W
Effect - Hot700 W
Temperature range3 - 90 °C
Volume154 l

Your configuration

ELDPF08Ergo Line Duo

    Download product sheet

    Accessories

    Card Holder

    Eutectic Plate GN 1/1

    Eutectic Plate Holder Ergo Line

    Aluminium Shelf GN 1/1

    Grid Stainless Steel GN 1/1
