Scanbox

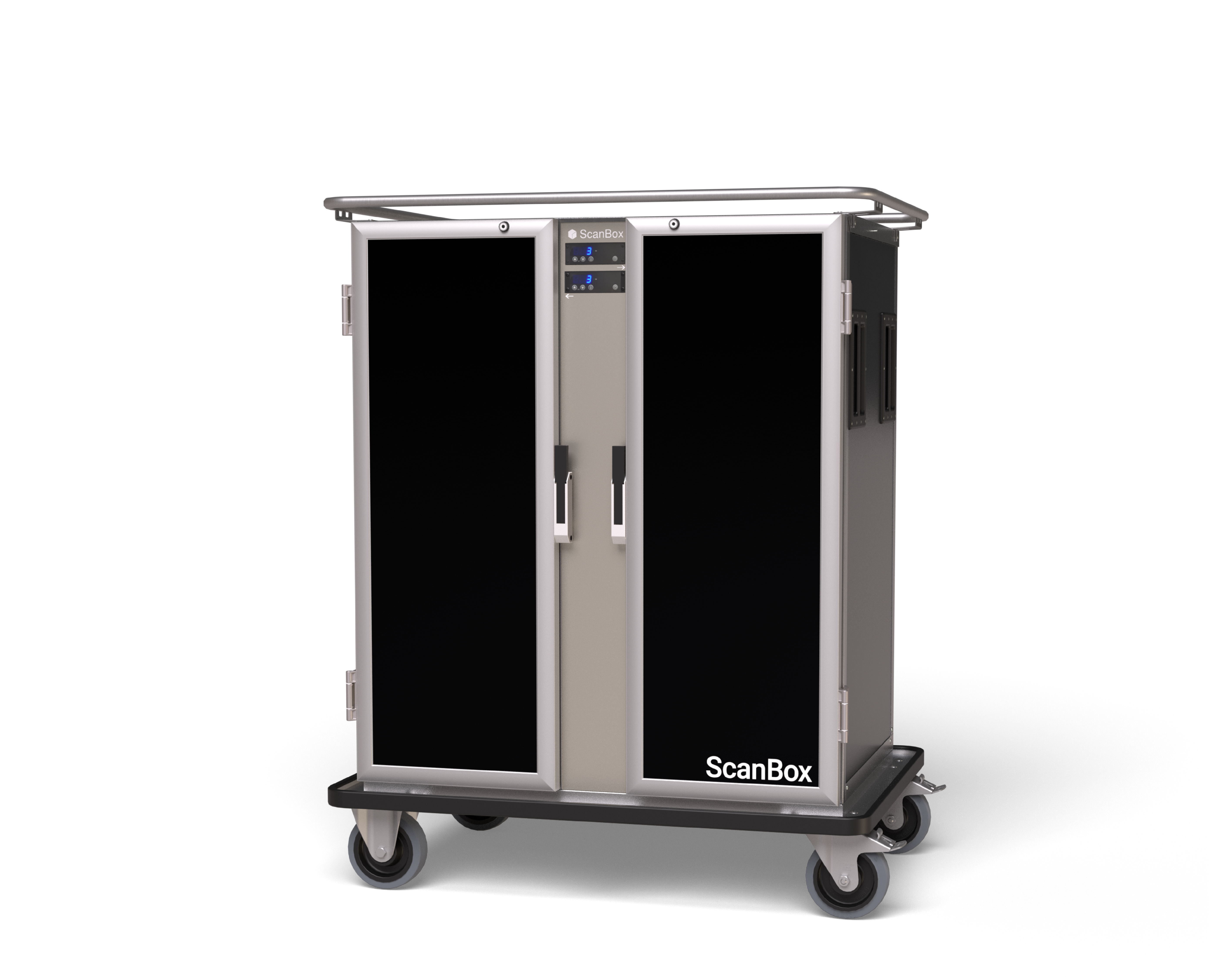

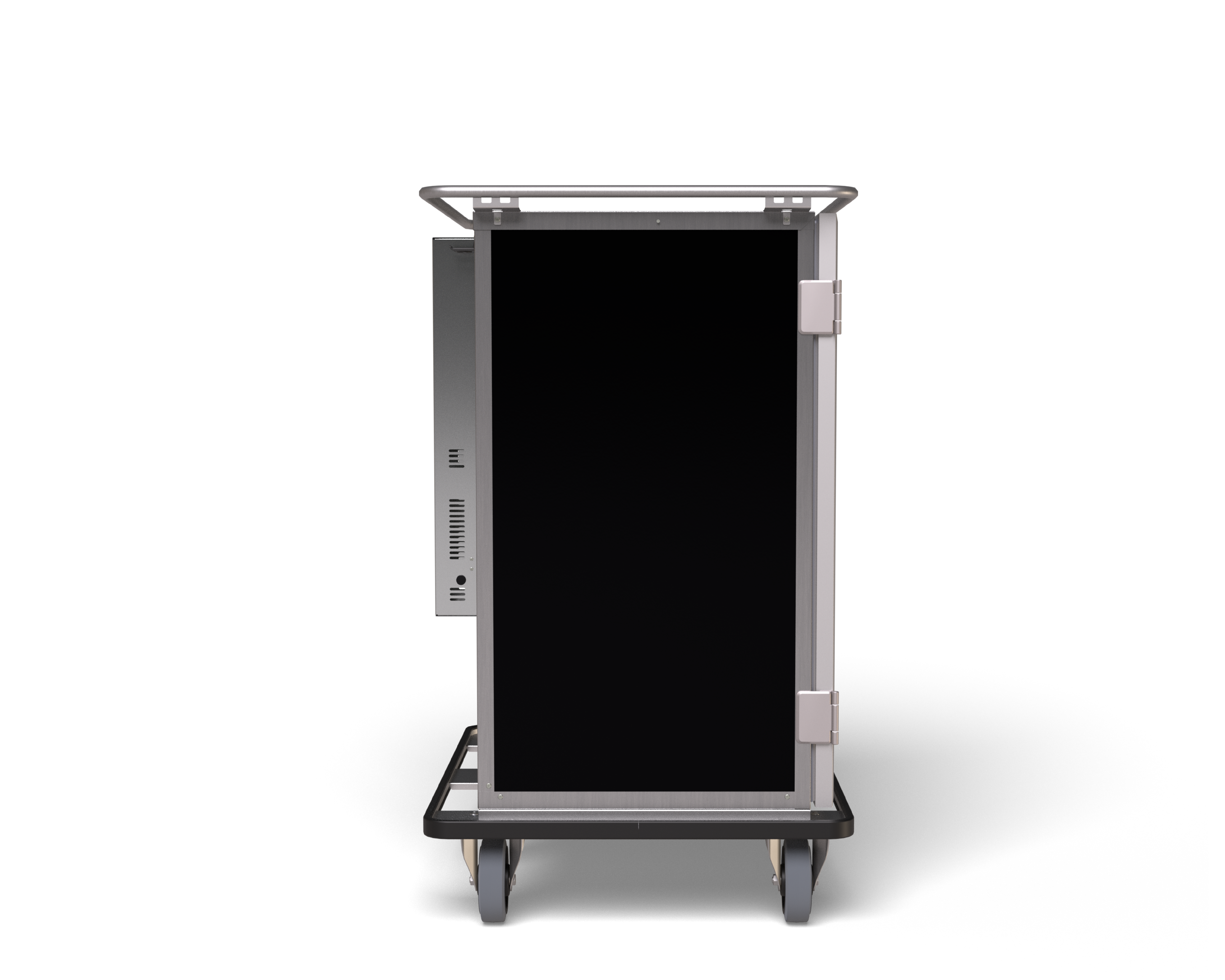

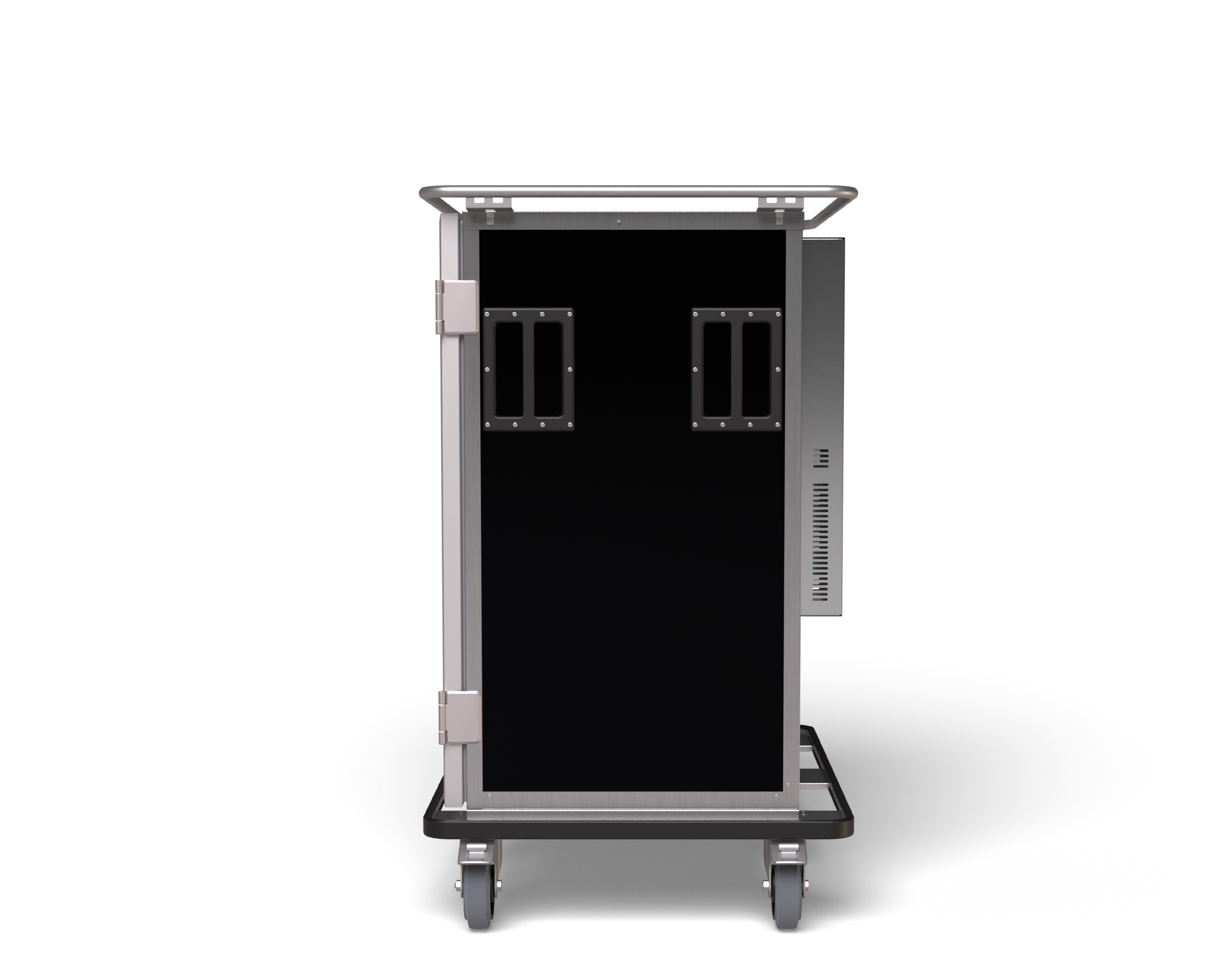

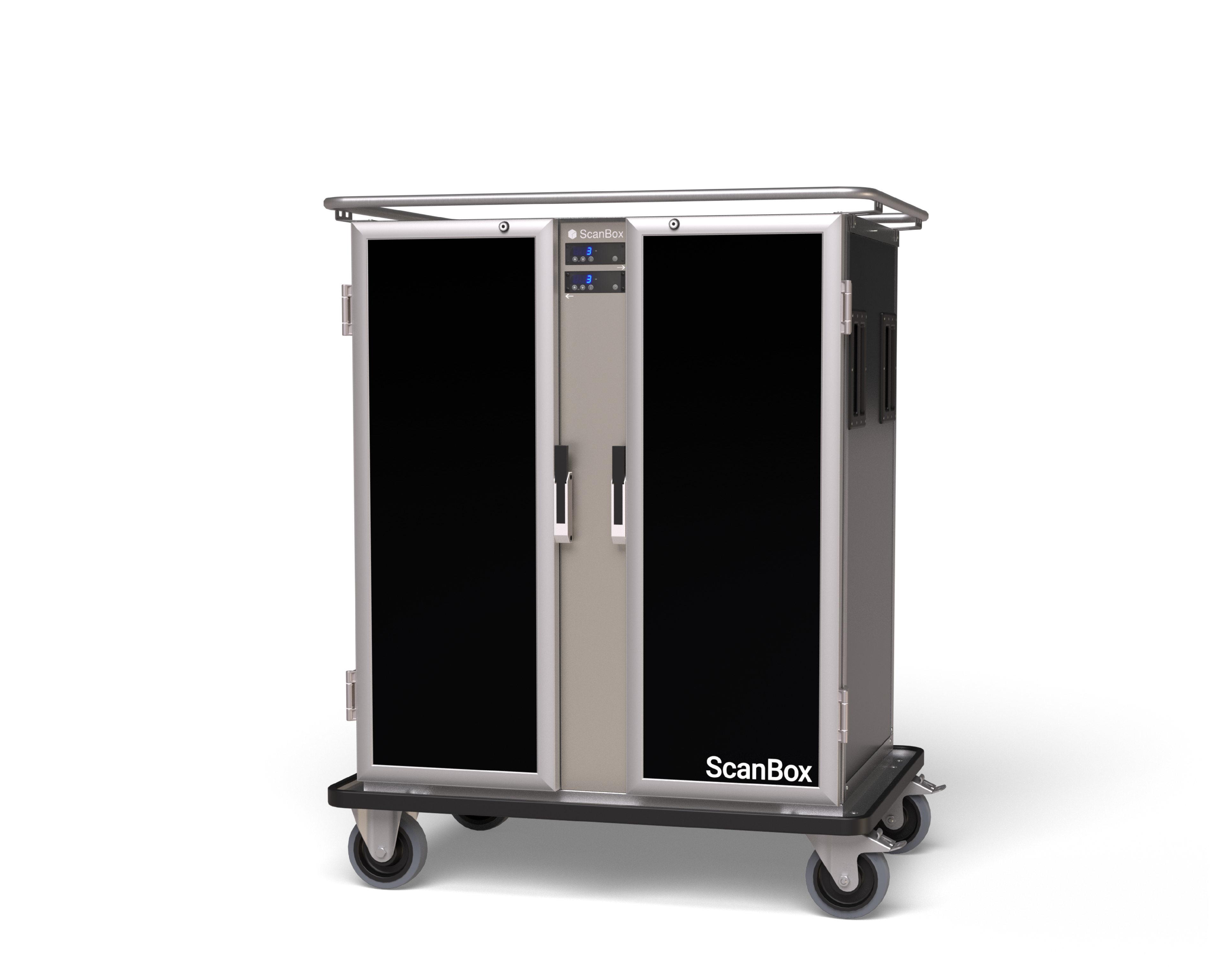

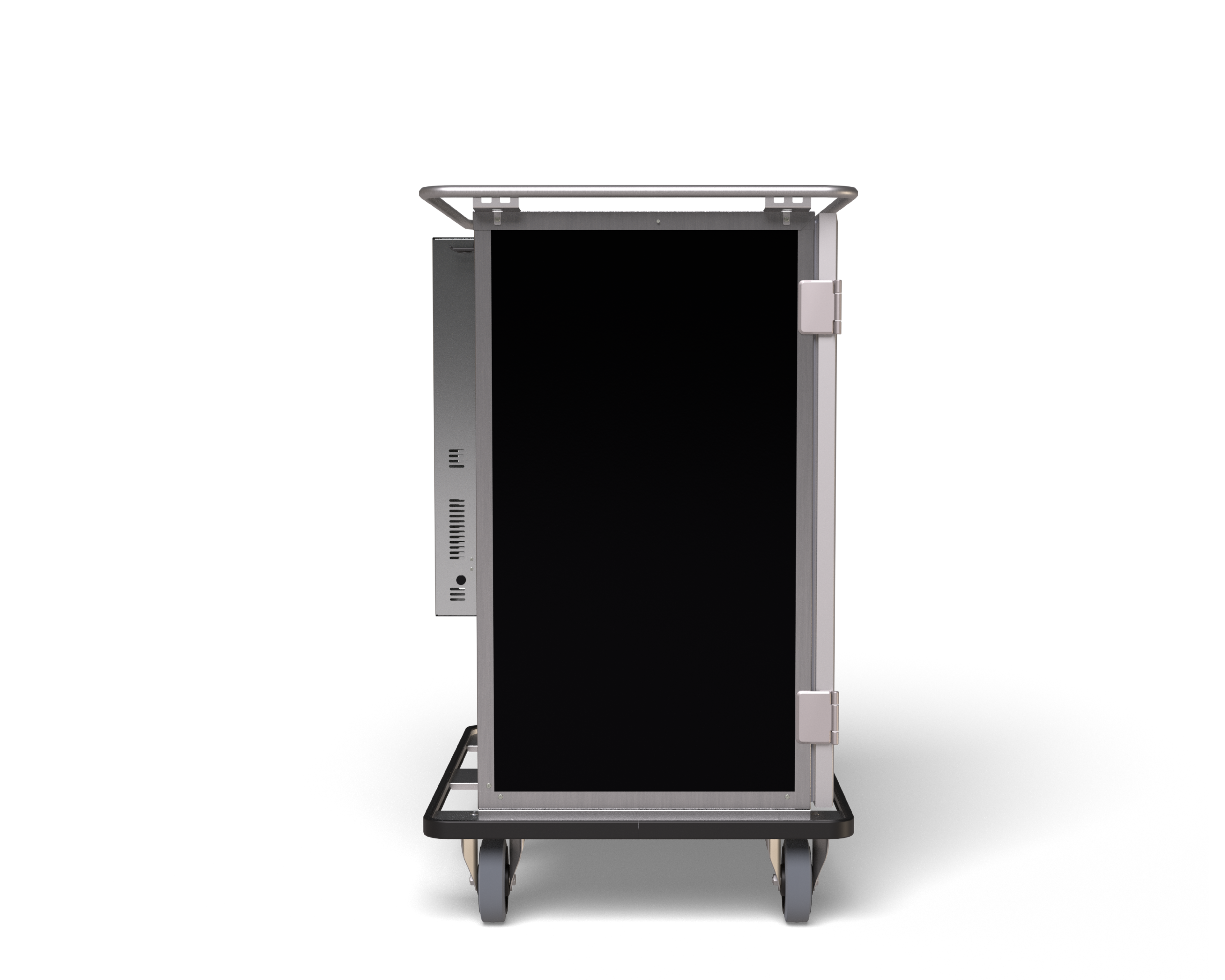

Ergo Line Duo

  • Peltier cooling
  • Peltier cooling

Product description

Ergo Line Duo is made to hold and transport cold food in two separate compartments. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.

The right and left compartments of the box form two individual temperature zones that are equipped with Peltier cooling for efficient temperature distribution down to 3°C in 45 minutes. Digitally adjustable temperatures ensure excellent food quality control. The cooling module has a compact design and is easy to clean. ScanBox Ergo Line Duo is available in several sizes with a capacity of up to 28 containers in the GN 1/1 standard.

Equipped with ScanBox Digital Control, One grip handle, solid doors, 160 mm lockable wheels, removable U-guide rails with 80 mm spacing, black RAL 9005, 220-230V single phase as standard. The equipment can be easily adapted as required through available extra options.


Equipments

Technical specification

NameValue
Rack pitch80 mm
No of trays24
Rack load max9 kg
Inside dimensionsW:352mm x H:1047mm x D:600mm
Outer dimensionsW:1100mm x H:1385mm x D:810mm
Weight125 kg
Voltage220-240 V
Power rating2.96 A
Effect - cold400 W
Volume221 l

Your configuration

ELDPP12Ergo Line Duo

    Download product sheet

    Accessories

    Card Holder

    Eutectic Plate GN 1/1

    Eutectic Plate Holder Ergo Line

    Aluminium Shelf GN 1/1

    Grid Stainless Steel GN 1/1
