Tray Line Single
- Neutral
Product description

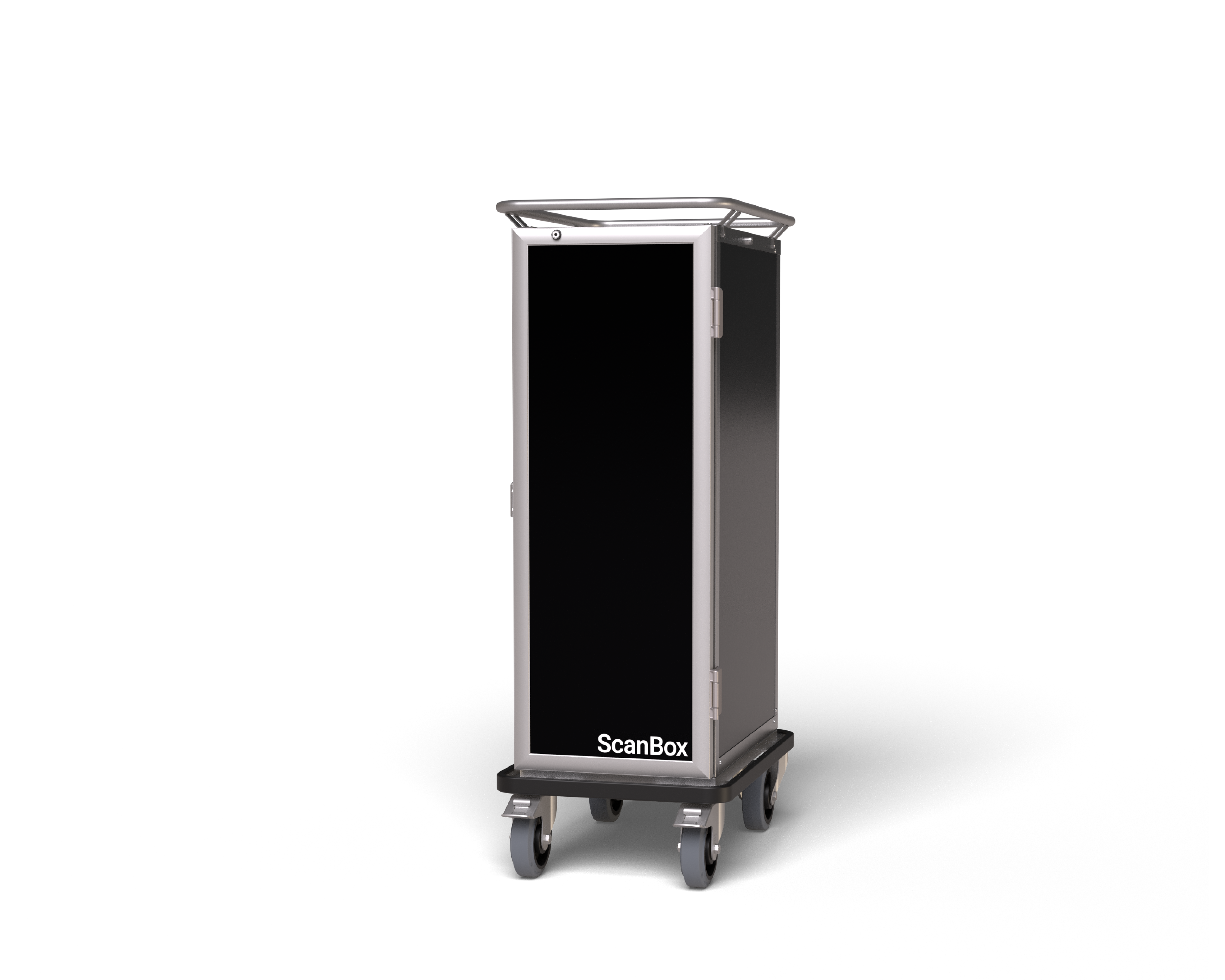

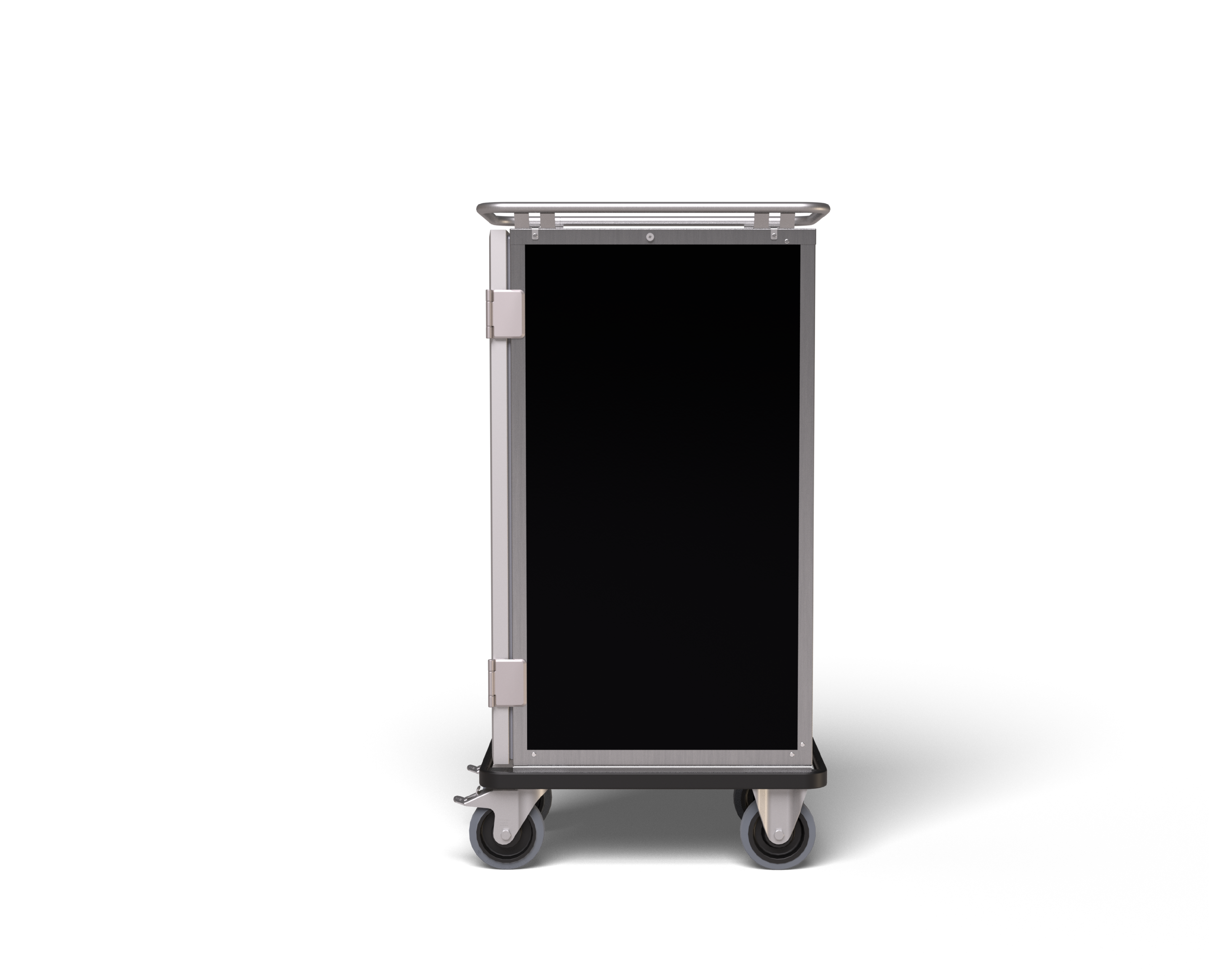

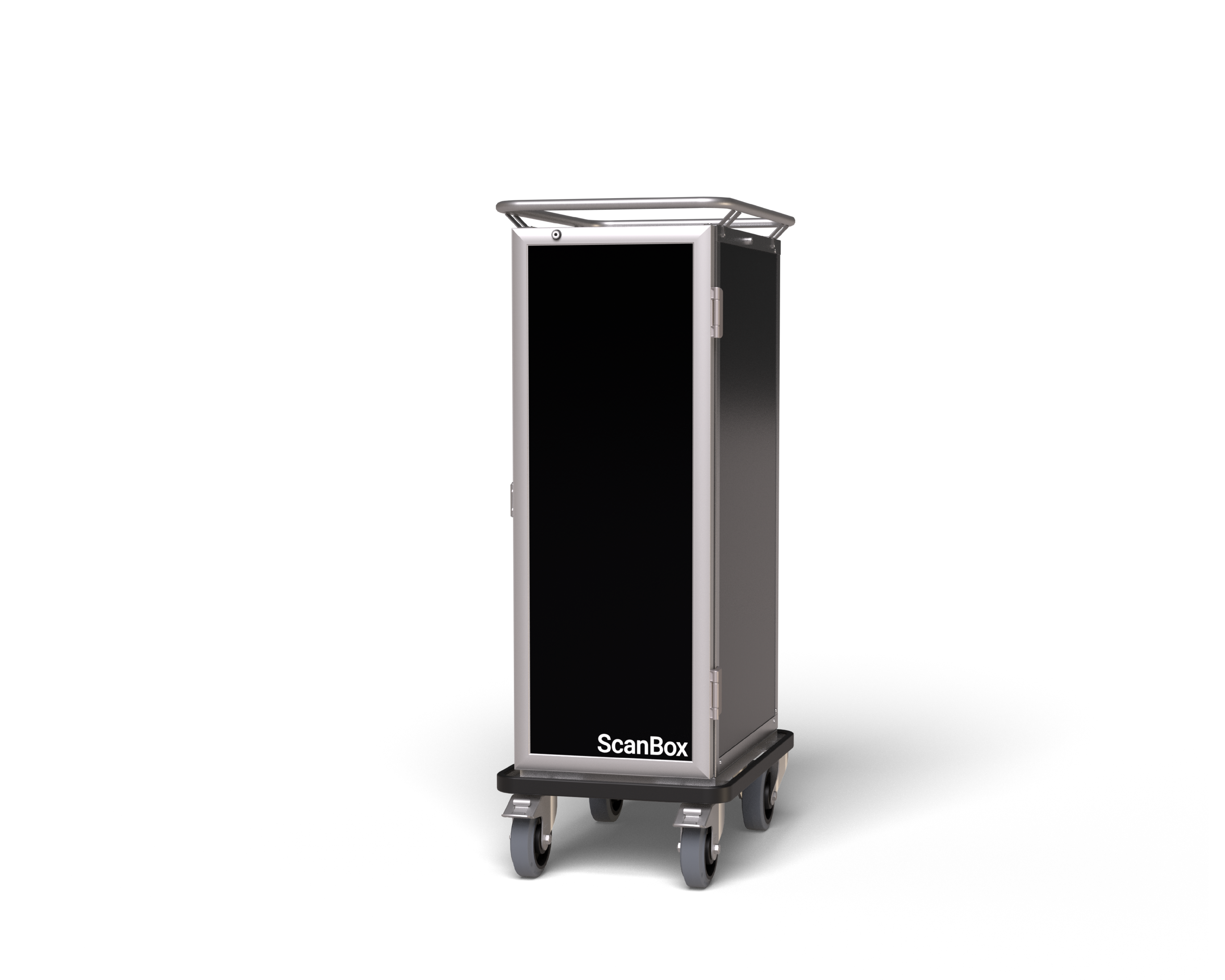

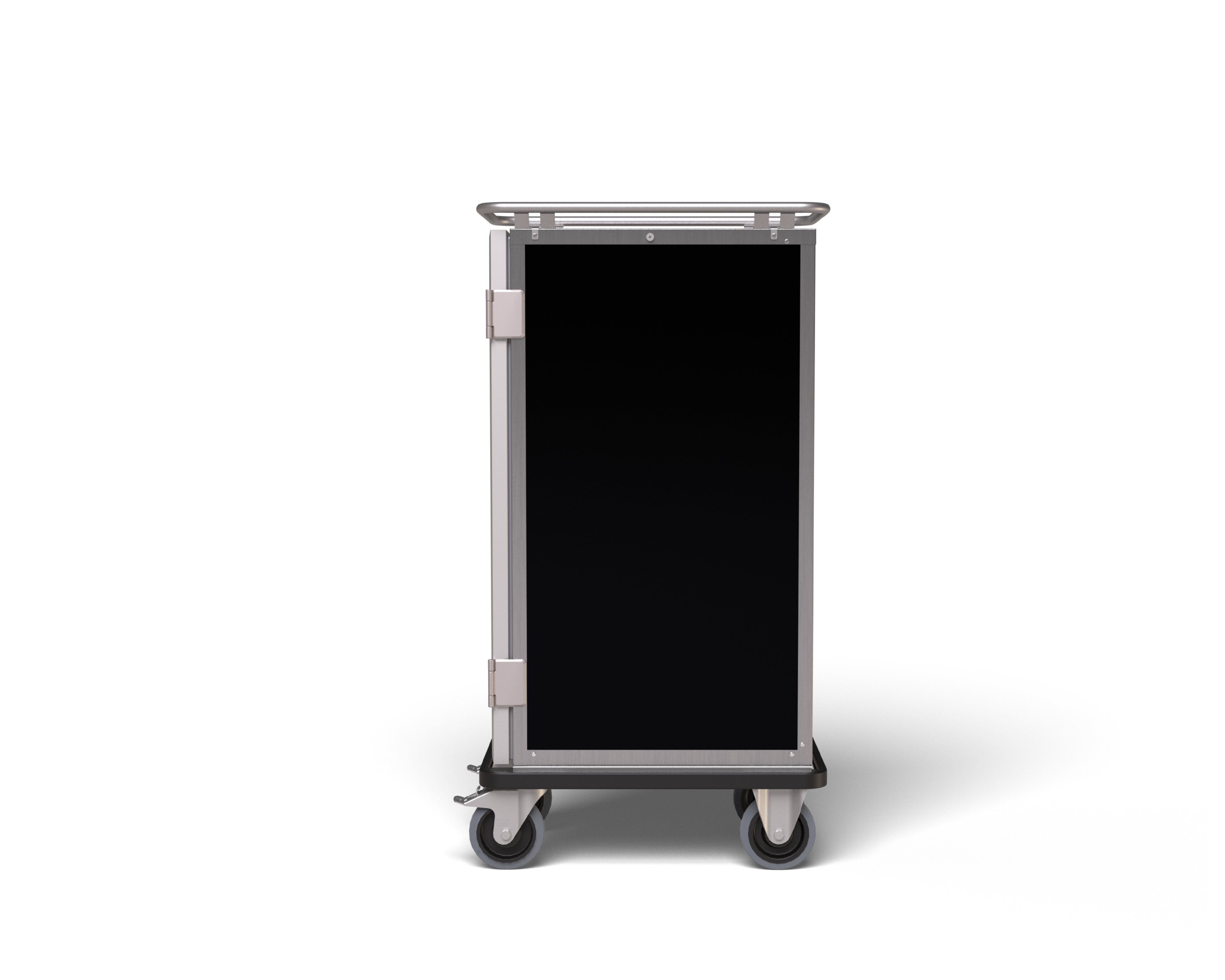

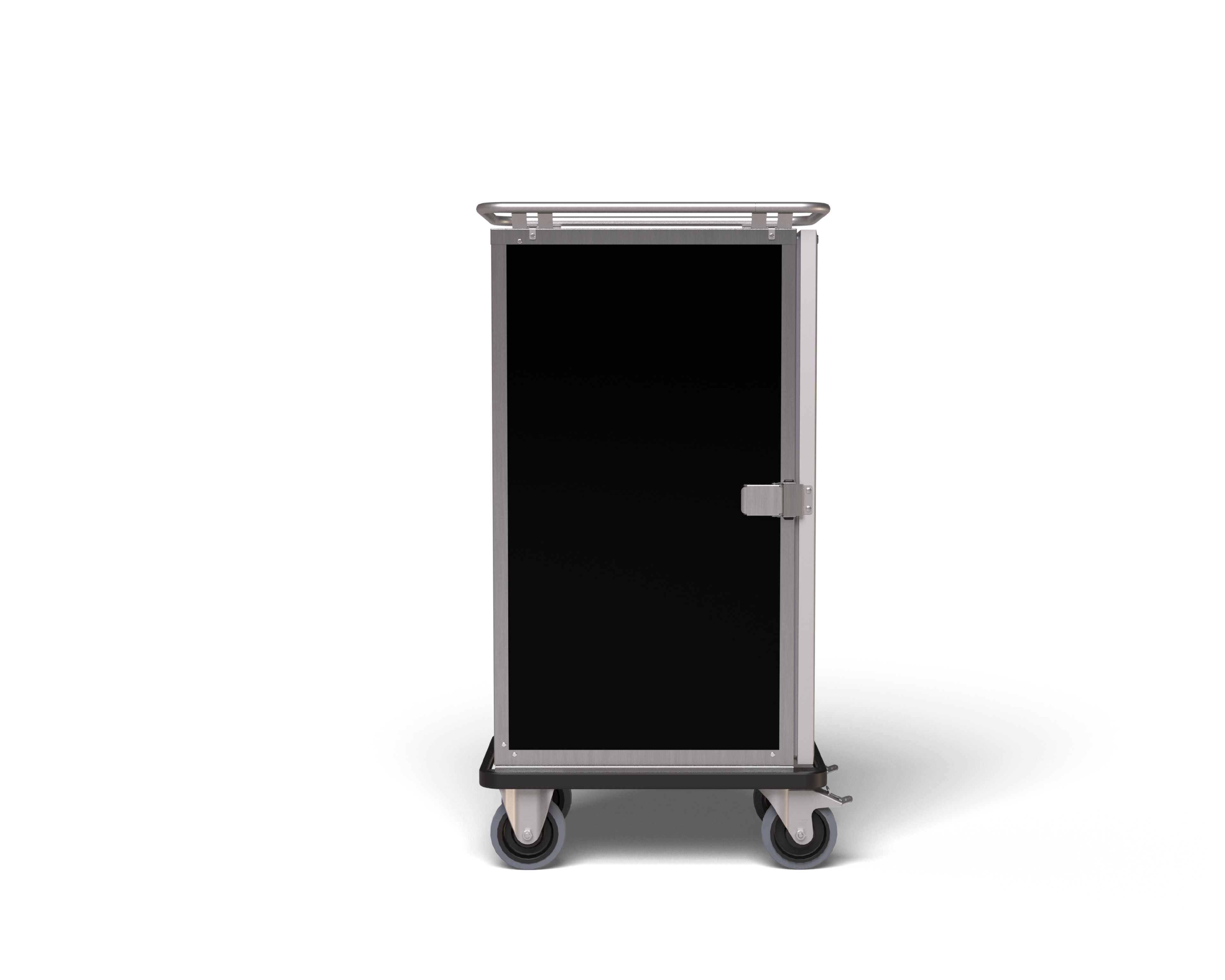

Tray Line Single is manufactured to hold and transport hot and cold food on trays according to the GN 1/1 standard. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.
The box can be pre-cooled in refrigerated rooms. At the top there is a compartment for an ice pack, which provides additionally stable temperature. ScanBox Tray Line Single is available in several sizes with capacity of up to 10 trays.
Equipped with stainless steel chassis, excenter lock, solid door, 160 mm lockable wheels, removable guide rails with 110 or 115 mm spacing, black RAL 9005, as standard. The equipment can be easily adapted as required through available extra options.
Model and size
Equipments
Technical specification
Name | Value |
---|---|
Rack pitch | 115 mm |
No of trays | 8 |
Rack load max | 9 kg |
Inside dimensions | W:352mm x H:1047mm x D:600mm |
Outer dimensions | W:500mm x H:1392mm x D:730mm |
Weight | 54 kg |
Volume | 221 l |
Documents
Your configuration
TGSNE08Tray Line Single
Technical specification
Name | Value |
---|---|
Rack pitch | 115 mm |
No of trays | 8 |
Rack load max | 9 kg |
Inside dimensions | W:352mm x H:1047mm x D:600mm |
Outer dimensions | W:500mm x H:1392mm x D:730mm |
Weight | 54 kg |
Volume | 221 l |
