Tray Line Single
- Neutral
Product description

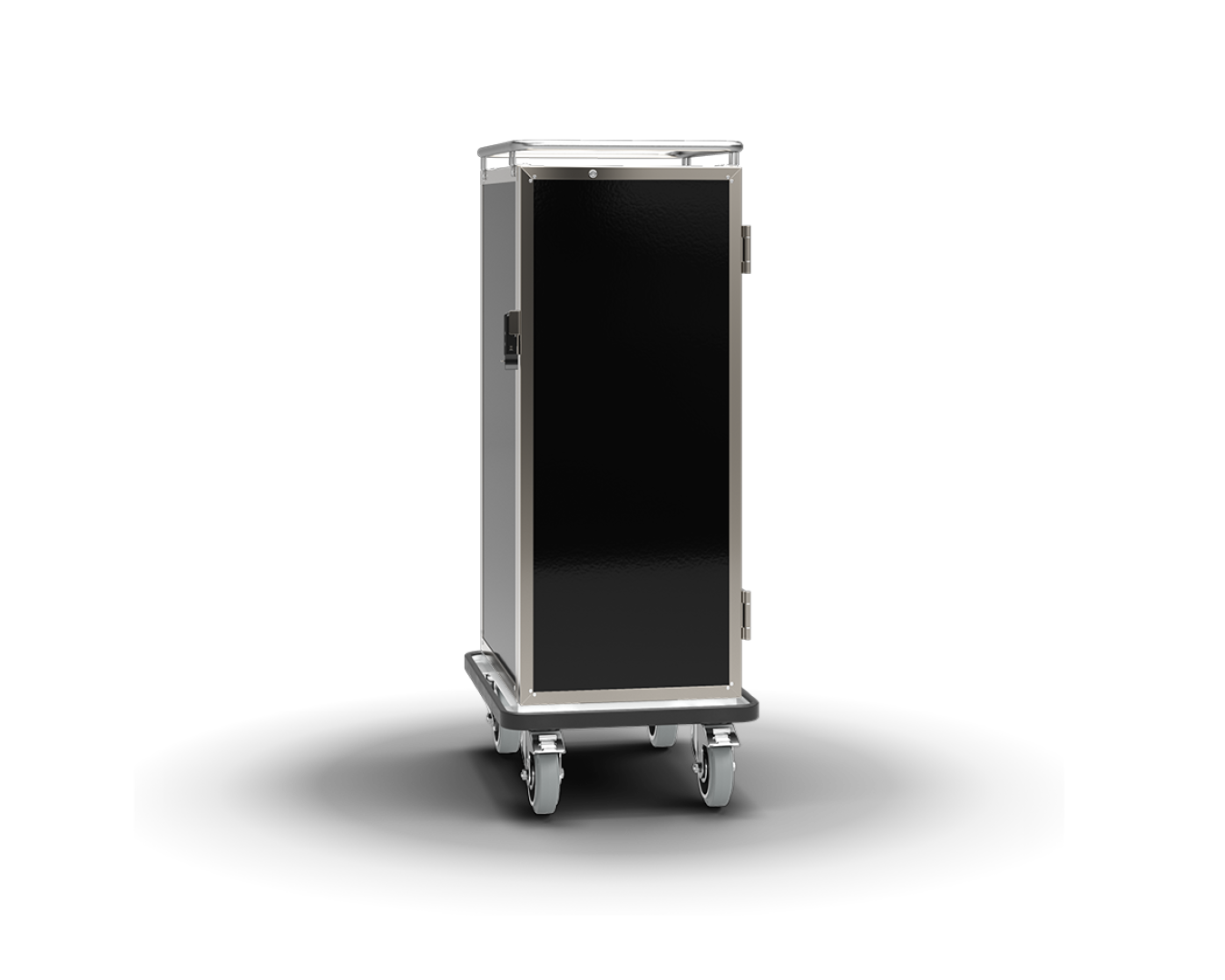

Tray Line Single is manufactured to hold and transport hot and cold food on trays according to the EN/VN standard. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.
The box can be pre-cooled in refrigerated rooms. Extend storage by easily retrofitting runners for eutectic plate for further temperature retention. ScanBox Tray Line Single is available in several sizes with capacity of up to 10 trays.
Equipped with stainless steel chassis, excenter lock, solid door, 160 mm lockable wheels, removable guide rails with 110 or 115 mm spacing, black RAL 9005, as standard The equipment can be easily adapted as required through available extra options.
Model and size
Equipments
Technical specification
Name | Value |
---|---|
Rack pitch | 115 mm |
No of trays | 8 |
Rack load max | 9 kg |
Inside dimensions | W:402mm x H:1047mm x D:600mm |
Outer dimensions | W:550mm x H:1392mm x D:730mm |
Weight | 57 kg |
Volume | 253 l |
Documents
Your configuration
TESNE08Tray Line Single
Technical specification
Name | Value |
---|---|
Rack pitch | 115 mm |
No of trays | 8 |
Rack load max | 9 kg |
Inside dimensions | W:402mm x H:1047mm x D:600mm |
Outer dimensions | W:550mm x H:1392mm x D:730mm |
Weight | 57 kg |
Volume | 253 l |
