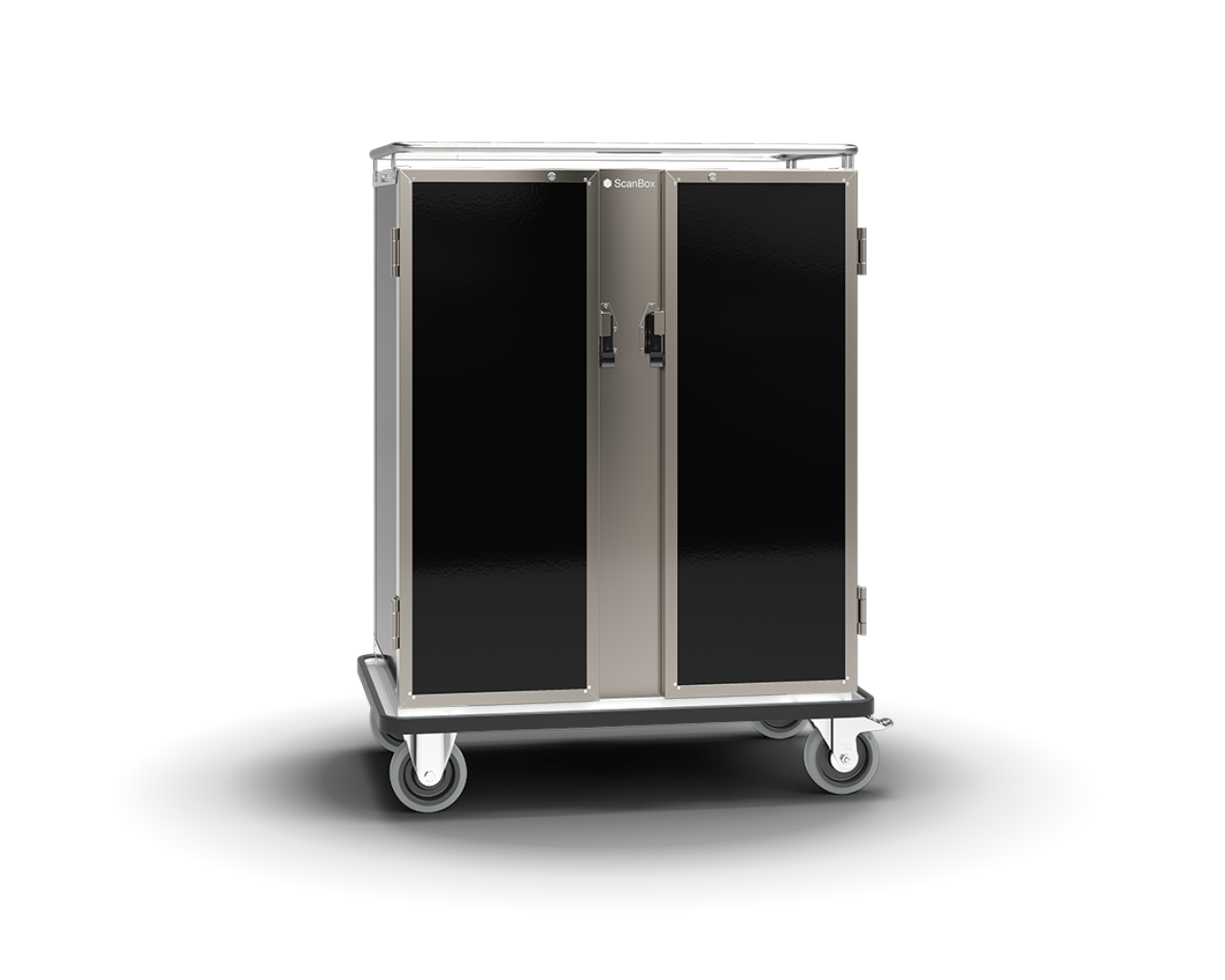

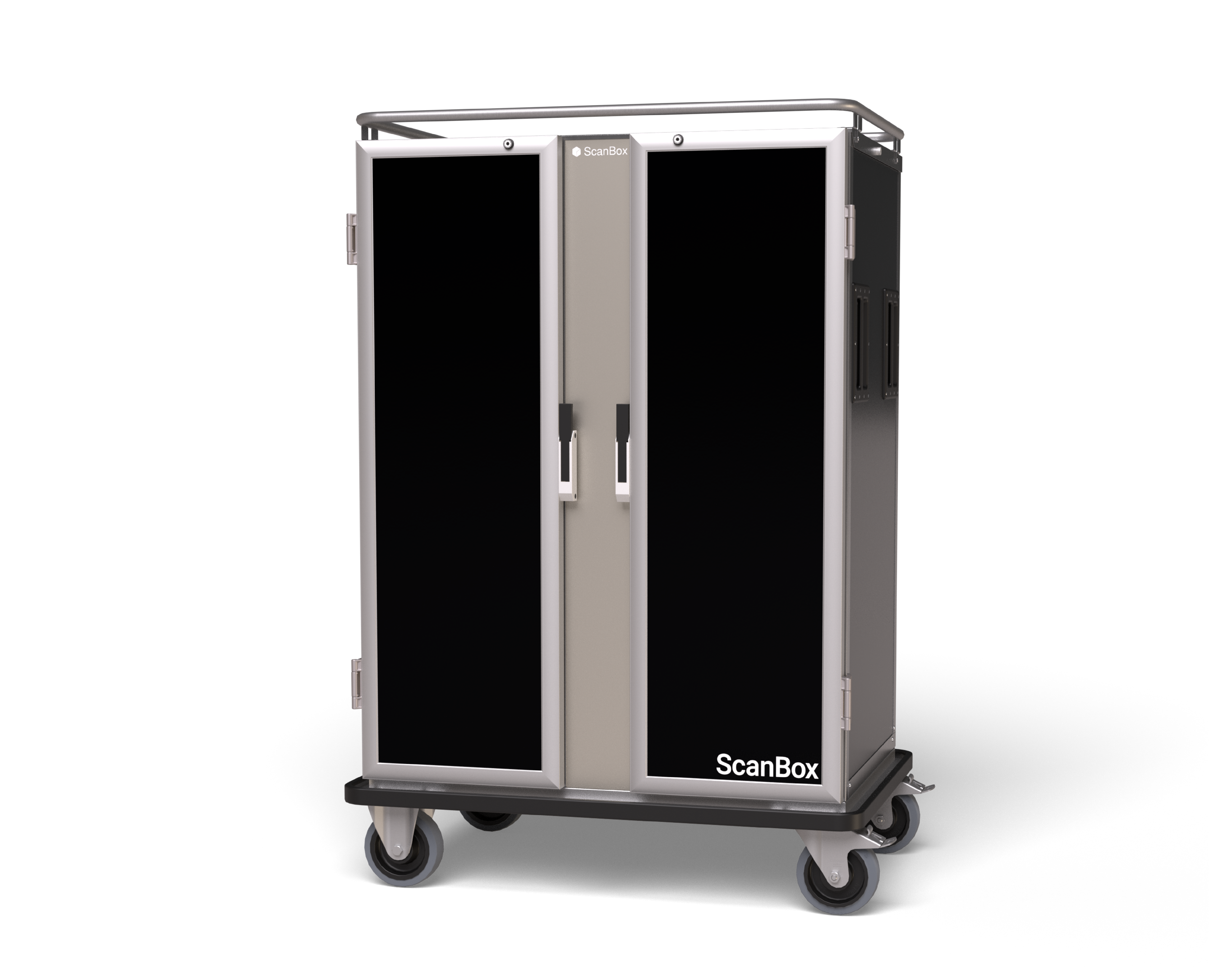

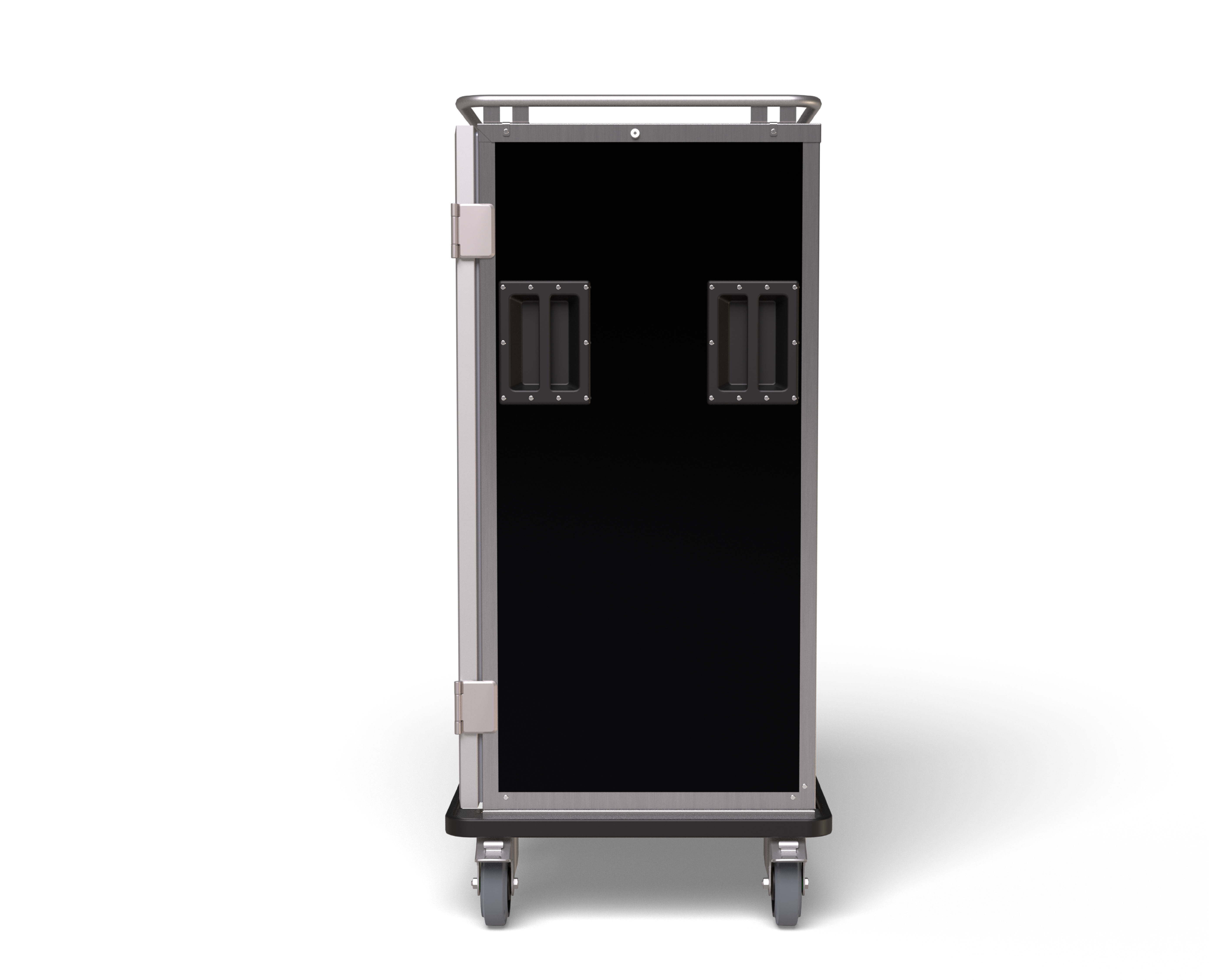

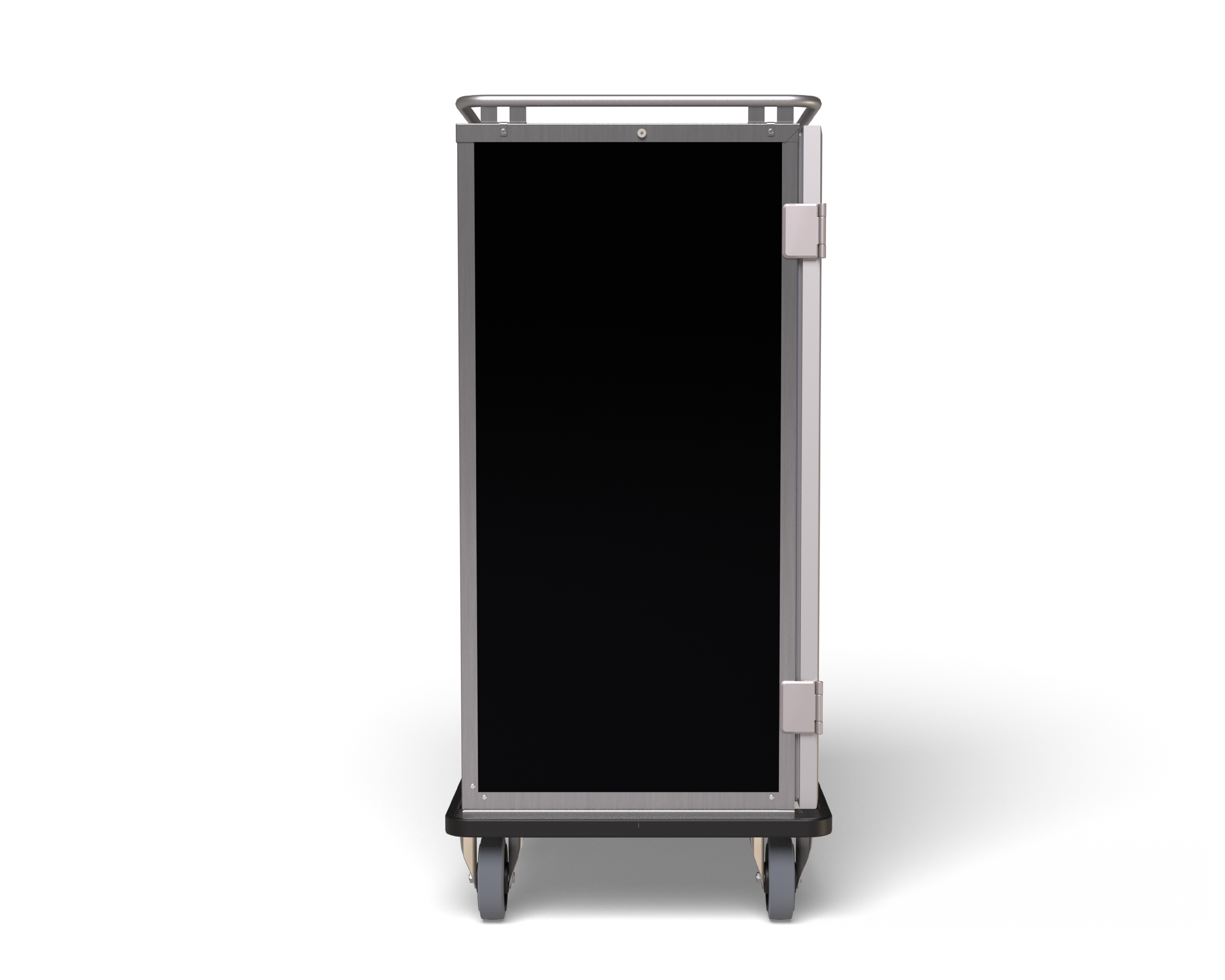

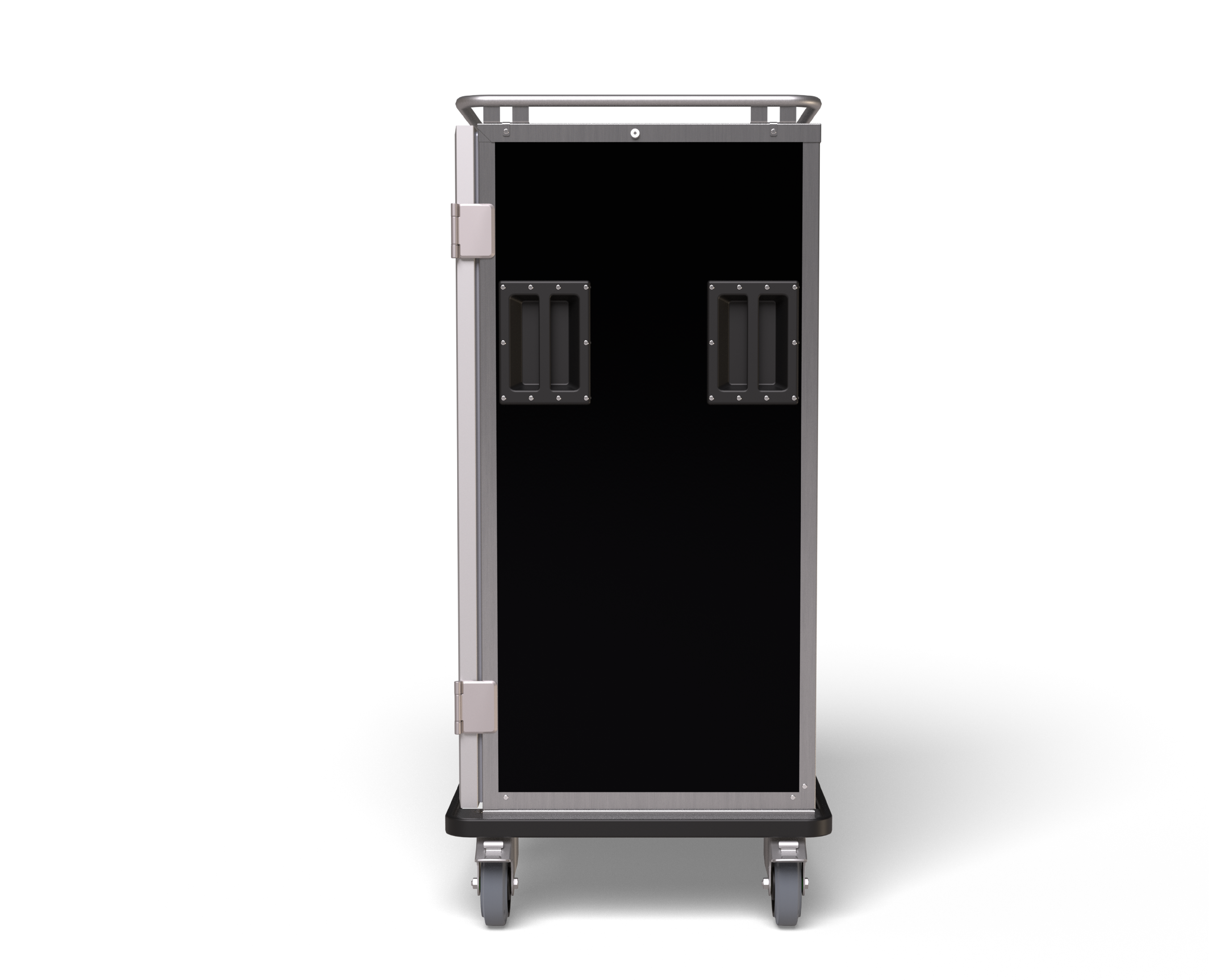

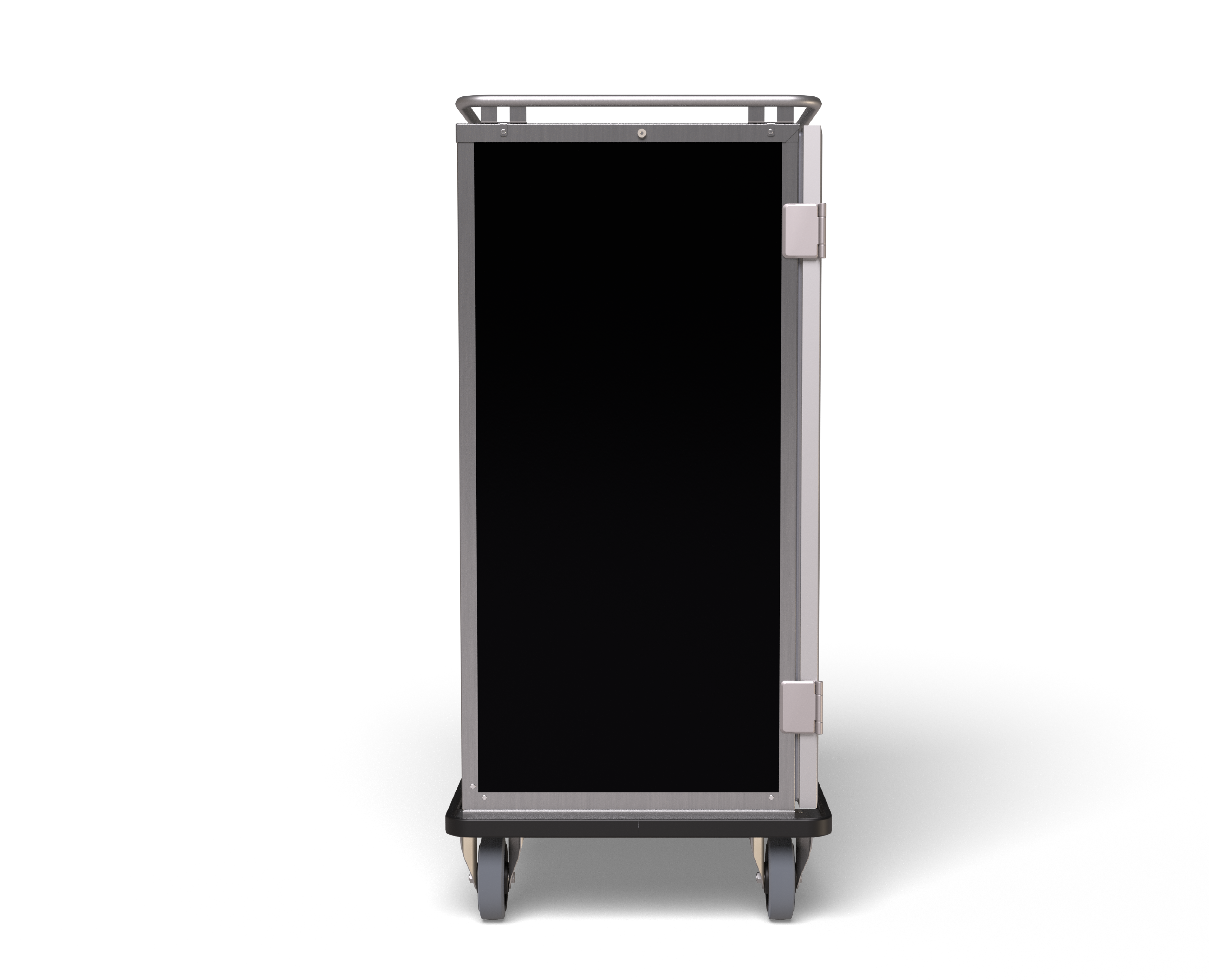

Tray Line Duo
- Neutral
- Neutral
Product description
Tray Line Duo is manufactured to hold and transport hot and cold food on trays in two separate compartments according to the EN/VN standard. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.
The box can be pre-cooled in refrigerated rooms. Extend storage by easily retrofitting runners for eutectic plate for further temperature retention. ScanBox Tray Line Duo is available in several sizes with capacities of up to 20 trays.
Equipped with stainless steel chassis, One grip handle, solid doors, 160 mm lockable wheels, removable guide rails with 110 or 115 mm spacing, black RAL 9005, as standard. The equipment can be easily adapted as required through available extra options.
Model and size
Equipments
Technical specification
Name | Value |
---|---|
Rack pitch | 115 mm |
No of trays | 20 |
Rack load max | 9 kg |
Inside dimensions | W:402mm x H:1207mm x D:600mm |
Outer dimensions | W:1160mm x H:1553mm x D:730mm |
Weight | 127 kg |
Volume | 291 l |
Documents
Your configuration
TEDNN10Tray Line Duo
Technical specification
Name | Value |
---|---|
Rack pitch | 115 mm |
No of trays | 20 |
Rack load max | 9 kg |
Inside dimensions | W:402mm x H:1207mm x D:600mm |
Outer dimensions | W:1160mm x H:1553mm x D:730mm |
Weight | 127 kg |
Volume | 291 l |
