Scanbox

Ergo Line Combo

  • Peltier cooling
  • Fan heating

Product description

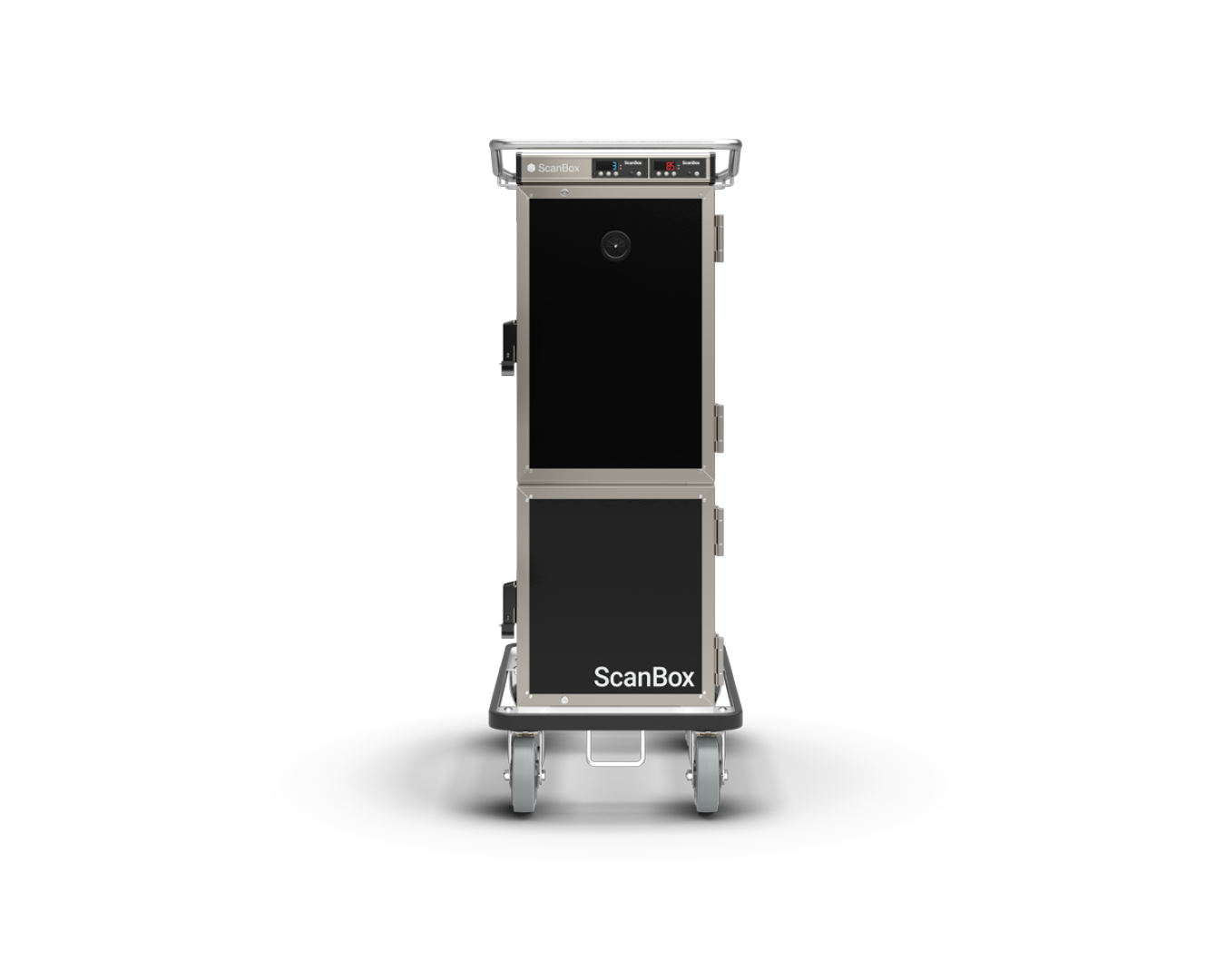

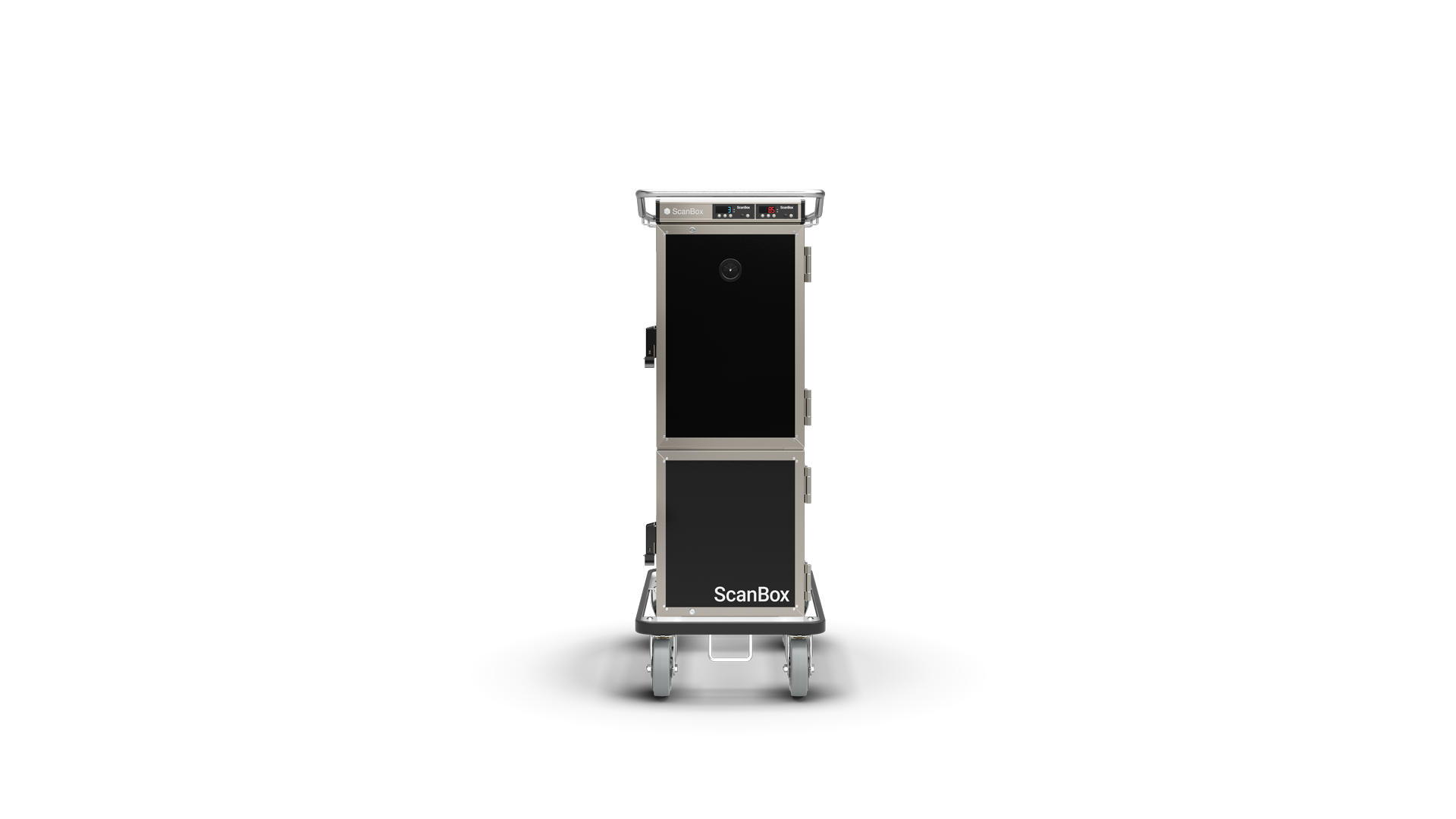

Ergo Line Combo is made to hold and transport cold and hot food in two separate compartments. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.

The lower compartment of the box is equipped with Peltier cooling that provides effective temperature distribution down to 3°C. The upper space of the box has a fan heating system that provides fast and uniform heat distribution and can reach operating temperatures of up to 90°C. Adjustable temperature and ventilation ensure excellent food quality control. ScanBox Ergo Line Combo is available in several sizes and variants with a capacity of up to 12 containers in the GN 1/1 standard.

Equipped with ScanBox Digital Control, excenter lock, solid doors, 160 mm lockable wheels, removable U-guide rails with 80 mm spacing, black RAL 9005, 220-230V single phase as standard. The equipment can be easily adapted as required through available extra options.


Equipments

Technical specification

NameValue
Rack pitch80 mm
No of trays10
Rack load max9 kg
Inside dimensionsW:352mm x H:572mm x D:600mm
Outer dimensionsW:540mm x H:1437mm x D:810mm
Weight67 kg
Voltage220-240 V
Power rating3.09 A
Effect - cold350 W
Effect - Hot385 W
Temperature range3 - 90 °C
Volume208 l

Your configuration

ELCPF46Ergo Line Combo

    Download product sheet

    Accessories

    Card Holder

    Eutectic Plate GN 1/1

    Eutectic Plate Holder Ergo Line

    Aluminium Shelf GN 1/1

    Grid Stainless Steel GN 1/1
