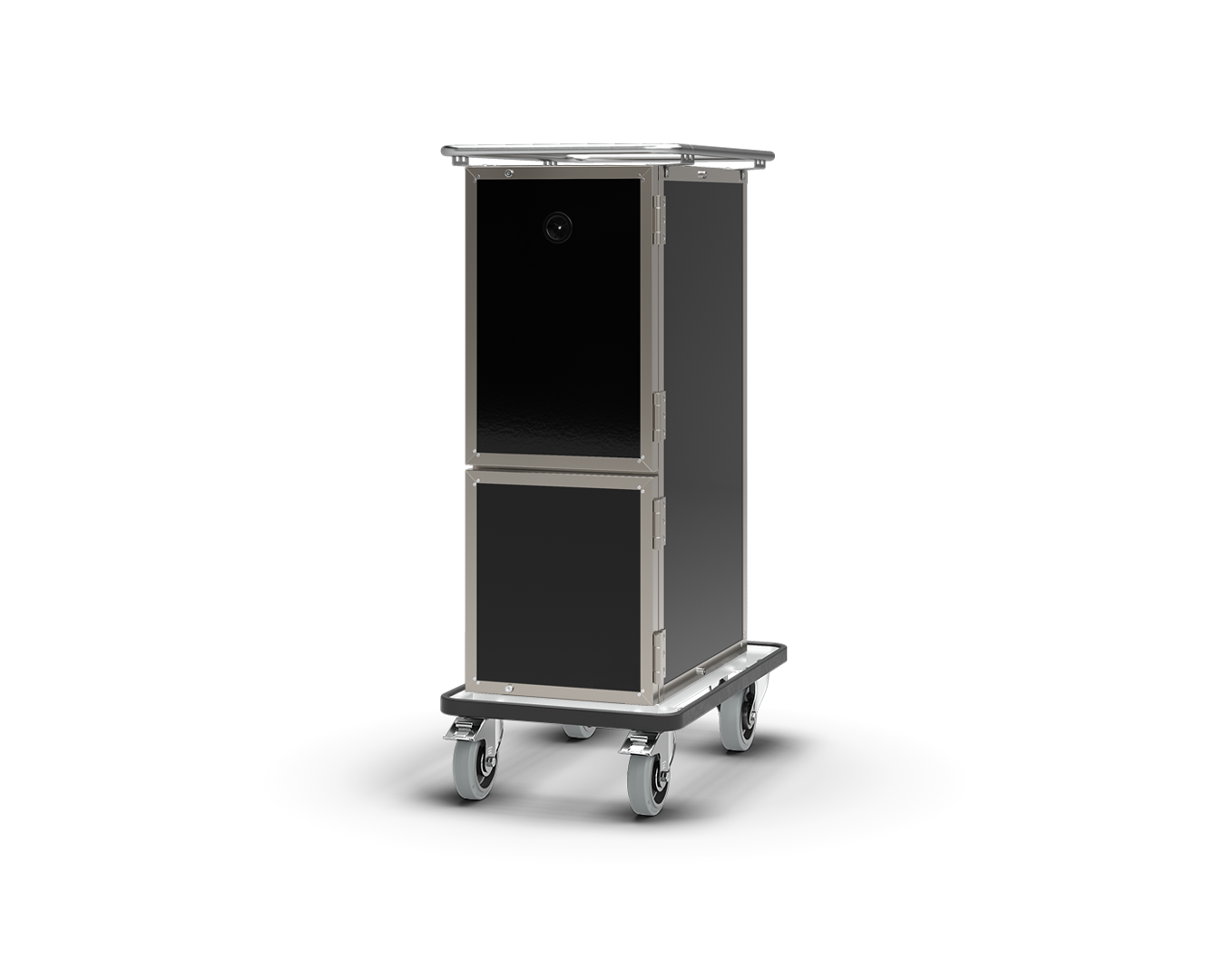

Basic Line Combo
- Peltier cooling
- Static heating
Product description
The Basic Line Combo is made to hold and transport cold and hot food in two separate compartments. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.
The lower compartment of the box is equipped with Peltier cooling that provides effective cooling down to 3°C. The upper compartment of the box has a static heating system that provides stable heating by natural convection and can reach operating temperatures of up to 90°C. Adjustable temperature and ventilation ensure excellent food quality control. The unit has capacity for 4 cold and 6 hot containers in the GN 1/1 standard.
ScanBox Basic Line Combo is equipped with digital temperature control on the back of the device, excenter lock, solid doors, 160 mm lockable wheels, removable U-guide rails with 80 mm spacing, black RAL 9005, 220-230V single phase.
Model and size
Equipments
Technical specification
Name | Value |
---|---|
Rack pitch | 80 mm |
No of trays | 10 |
Rack load max | 9 kg |
Inside dimensions | W:352mm x H:572mm x D:600mm |
Outer dimensions | W:540mm x H:1384mm x D:810mm |
Weight | 69 kg |
Voltage | 220-240 V |
Power rating | 2.81 A |
Effect - cold | 150 W |
Effect - Hot | 350 W |
Temperature range | 3 - 90 °C |
Volume | 121 l |
