Scanbox

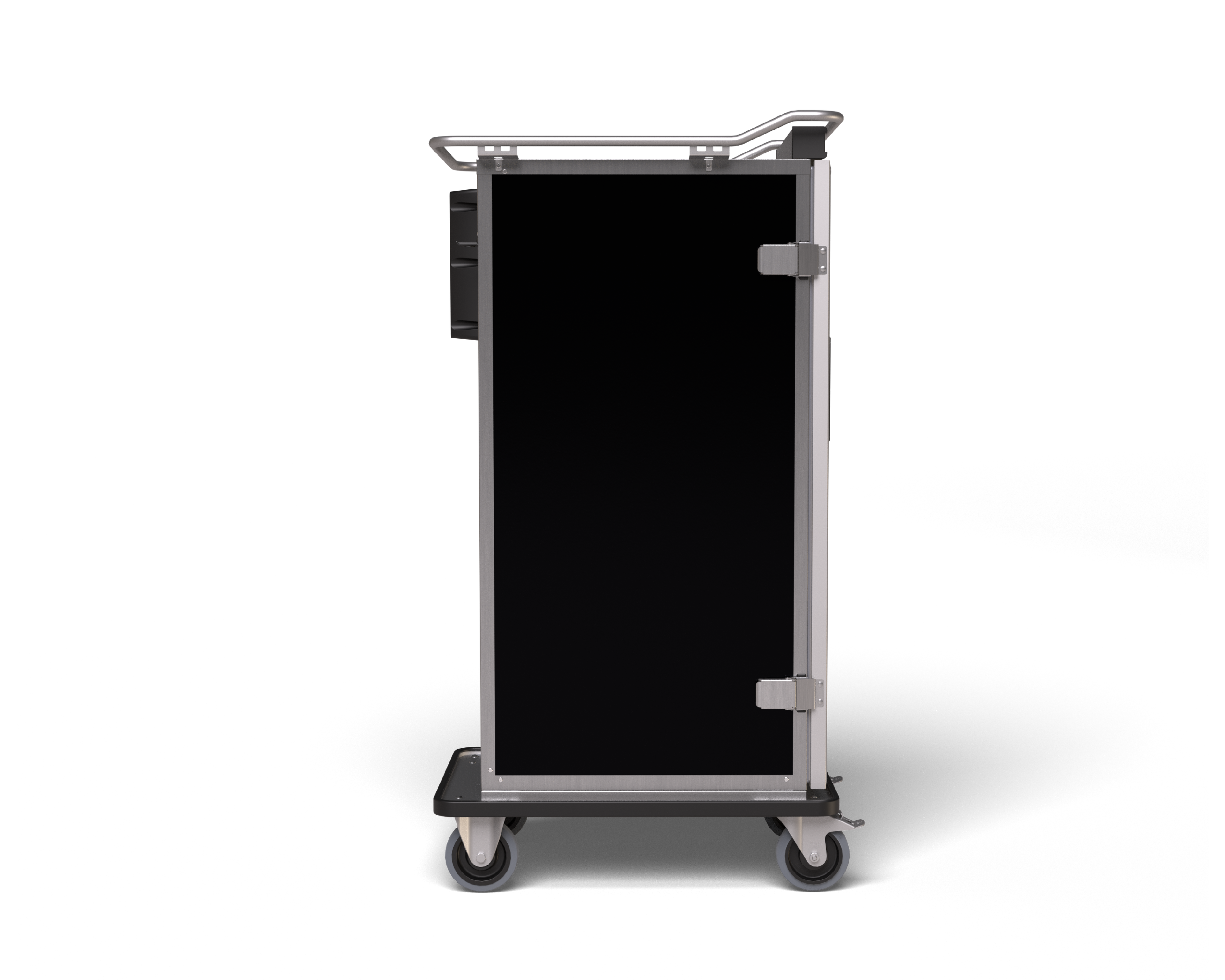

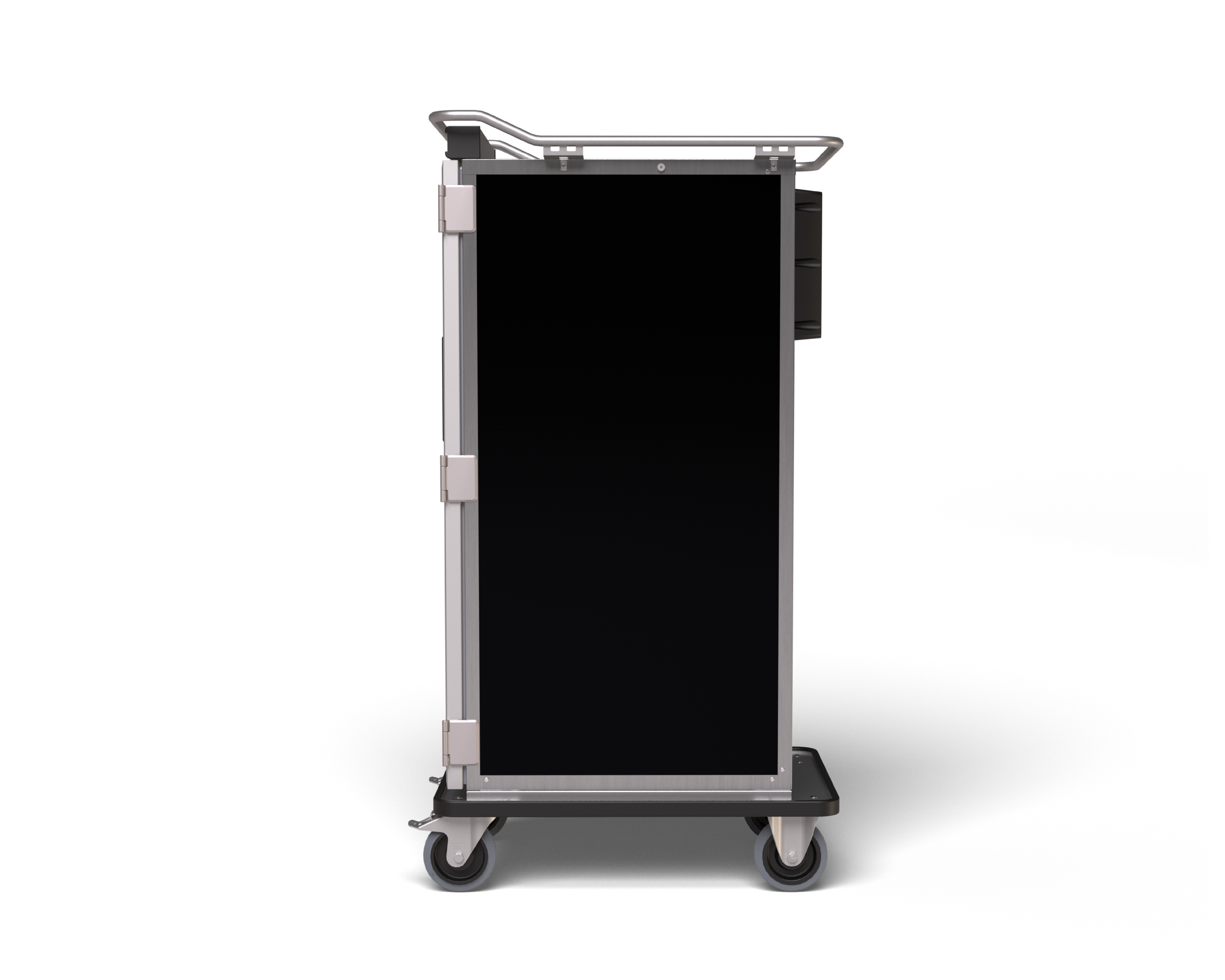

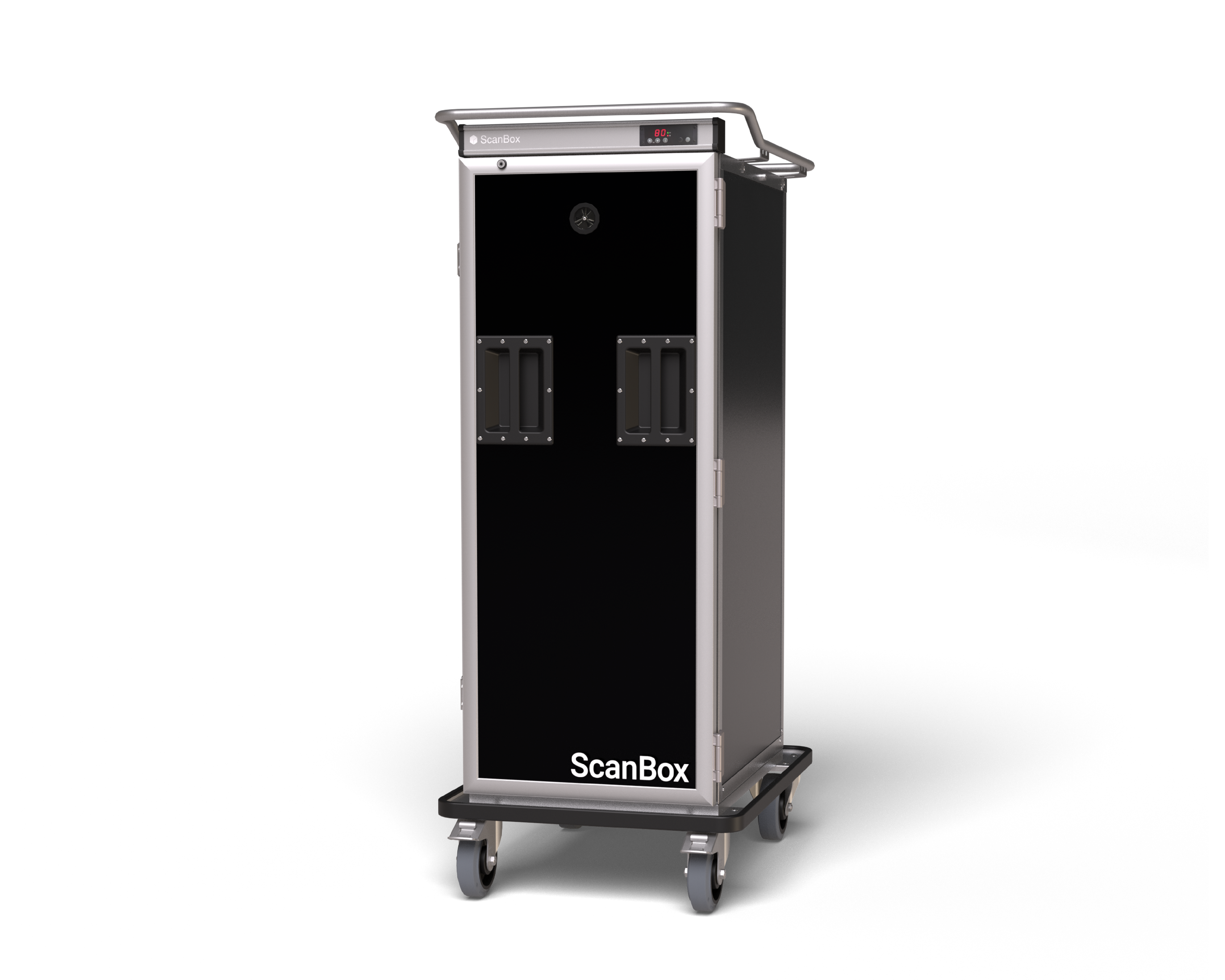

Bakery Line Single

  • Fan heating

Product description

Bakery Line Single is manufactured for the distribution of hot bakery products. The box is made according to the standard dimensions of bakery trays. The box is designed with ScanBox ExP construction that combines optimized insulation performance with high operational reliability and environmentally conscious choices.

The box is equipped with fan heating that provides fast and uniform heat distribution and can reach operating temperatures of up to 90°C in 30 minutes. Adjustable temperature and ventilation ensure excellent food quality control. ScanBox Bakery Line Single has capacity for 12 baking trays according to the standard dimensions of 400x600 or 450x600.

Equipped with ScanBox Digital Control, excenter lock, solid door, 160 mm lockable wheels, removable ‘L’ shaped runners with 100 mm spacing, black RAL 9005, 220-230V single phase with Type F electrical plug. The equipment can be easily adapted as required through available extra options.


Equipments

Technical specification

NameValue
Rack pitch100 mm
No of trays12
Rack load max9 kg
Inside dimensionsW:487mm x H:1287mm x D:681mm
Outer dimensionsW:675mm x H:1677mm x D:880mm
Weight80 kg
Voltage220-240 V
Power rating7.98 A
Effect - Hot1800 W
Volume427 l

Your configuration

BBSHF40Bakery Line Single

    Download product sheet

    Accessories

    Card Holder
